Tecline

Ideal for heavy load cartesian
multi-axes systems

Linear axes with rack and pinion transmission.
Rolling on trapezoidal or recirculating ball guides.

1, 2 and 3 Cartesian axis linear modules with rack and pinion drive guarantee precise manipulation of loads from 10 up to 2000 kg
with fast and silent functioning.

Select your Tecline

High load capacity

Payloads from 10 to 2000 Kg

Multiple independent carriages

The rack and pinion driving system allows to have multiple independent carriages.

Multiple Y/Z configurations

Tecline can be assembled in several different configurations

Different motion systems

Tecline actuators are available with different motion systems:
• recirculating ball guides
• prismatic roller bearings

icon usage as linear guide or actuator

Suitable for very long strokes thanks to rack and pinion driving system

Optimal reliability in dirty environments

Optimal reliability in dirty environments

Find out the technical details and
select your Tecline.

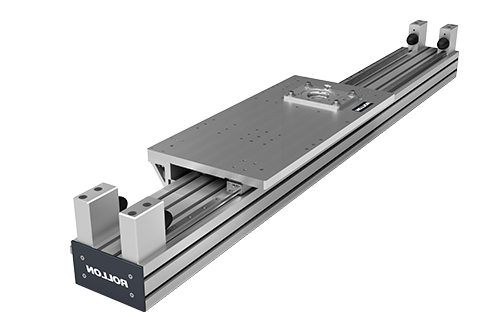

Tecline PAS

Precise self-supported axis for strokes from 3 to 50 m. Payload from 200 to 1000 Kg
118140170200220230280360
CAD FileCatalogView technical details
Ask Rollon

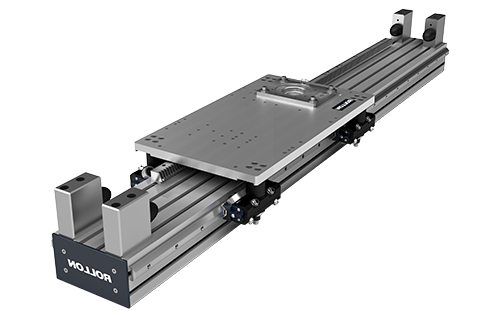

Tecline PAR

Self-supported axis for strokes from 3 to 50 m
170200220230280360
CAD FileCatalogView technical details
Ask Rollon
