Clean Room System

Designed for clean rooms

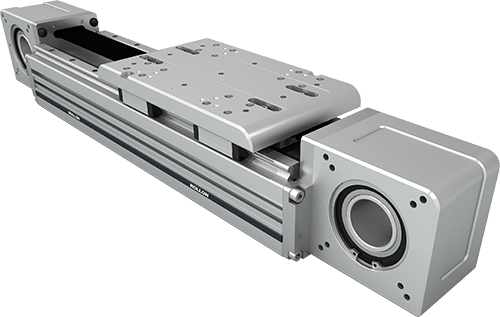

Belt driven linear actuators with aluminum profile.

A special vacuum system, prevents particles from being discharged in the environment where the linear unit is located.

icon clean room

Clean room class ISO 3

Special vacuum system with:
• sealing strip alog the opening where the slide moves
• 0.8 vacuum pump connected to 2 vacuum pipes located inside the drive head and the idle head
icon high repeatability

High repeatability and accuracy

Clean Room System actuators have
a repeatability accuracy of ±0,05 mm
High dynamics: V= 15m/s, A=10m/s2

High Dynamics

• Speed up to 7 m/s
• Acceleration up to 20 m/s²



Clean Room belt driven linear actuators

Find out the technical details and
select your Clean Room System.

Product Linear Motion System Driving Protection Load capacity [n] Max. Speed [m/s] Max. Acceleration [m/s2] Repeatability Accuracy [mm]
ONE
BALLS
TOOTHED BELT
PROTECTED WITH SUCTION
4980
5
50
± 0.05
