Linear Rails

Linear and curved guides with ball and roller bearings, with hardened raceways, high load capacities, self-alignment and capable of working in dirty environments.

Most Wanted

Compact Rail & Compact Rail Plus

Compact Rail & Compact Rail Plus

Self-aligning linear guides with bearings and a C-profile made of cold-drawn carbon steel, with induction hardened and ground raceways.
Product Section Hardened Self alignment Slider Anticorrosion Load capacity [n] Fx Operating temperature
TLC KLC ULC
ROLLERS
15000
-20°C/+120°C
TG/TMG
ROLLERS
10800
-20°C/+120°C

X-Rail

Linear bearings with bended C-profile. Available in zinc-plated steel, stainless steel or hardened with Rollon NOX treatment
Product Section Hardened Self alignment Slider Anticorrosion Load capacity [n] Fx Operating temperature
TEX TES UEX UES
ROLLERS
1740
-20°C/+100°C TEX-UEX -20°C/+120°C TES-UES
TEN/TEP UEN
ROLLERS
3240
-30°C/+150°C

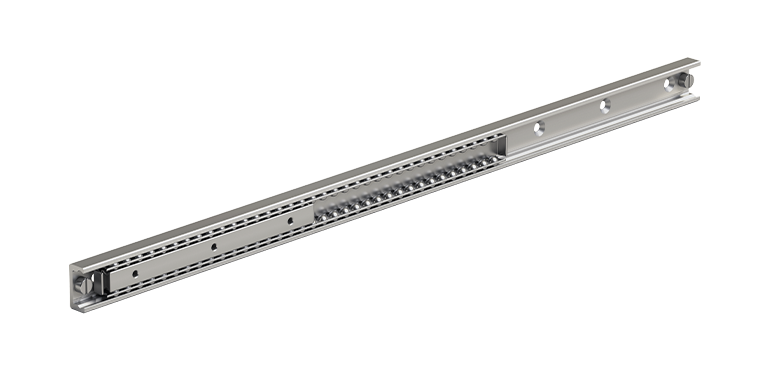

Easyslide

Linear ball rails with single slider or multiple sliders
Product Section Hardened Self alignment Slider Anticorrosion Load capacity [n] Fx Operating temperature
SN
BALLS
122000
-20°C/+170°C
SNK
BALLS
10858
-20°C/+70°C

Curviline

Curvilinear rails with radial ball bearing rollers (constant and variable radius)
Product Section Hardened Self alignment Slider Anticorrosion Load capacity [n] Fx Operating temperature
CKR CVR CKRH CVRH CKRX CVRX
ROLLERS
2475
-20°C/+80°C

O-Rail

Modular linear guides with rollers. Versatile for the highest flexibility of configurations.
Product Section Hardened Self alignment Slider Anticorrosion Load capacity [n] Fx Operating temperature
FXRG
ROLLERS
4000
-20°C/+120°C

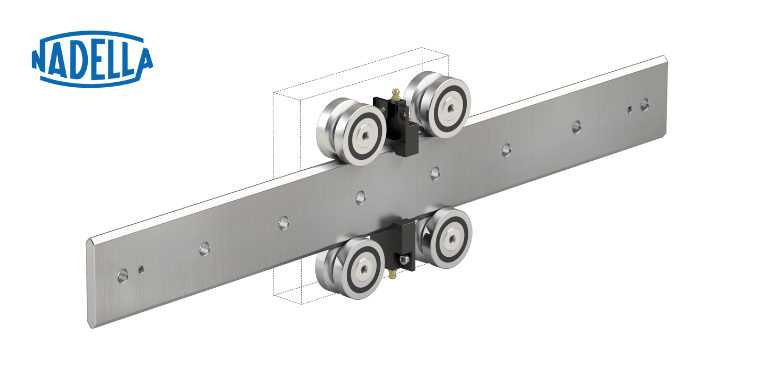

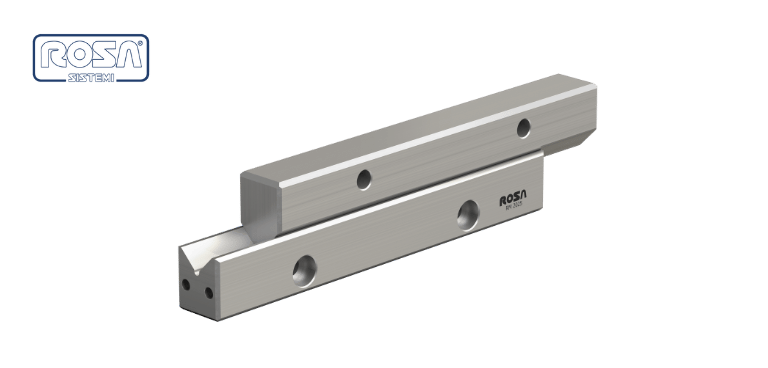

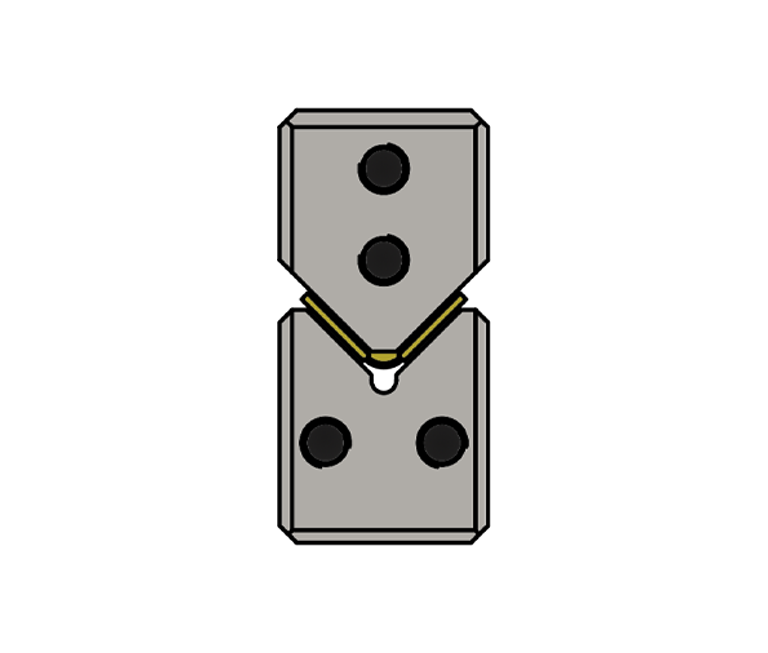

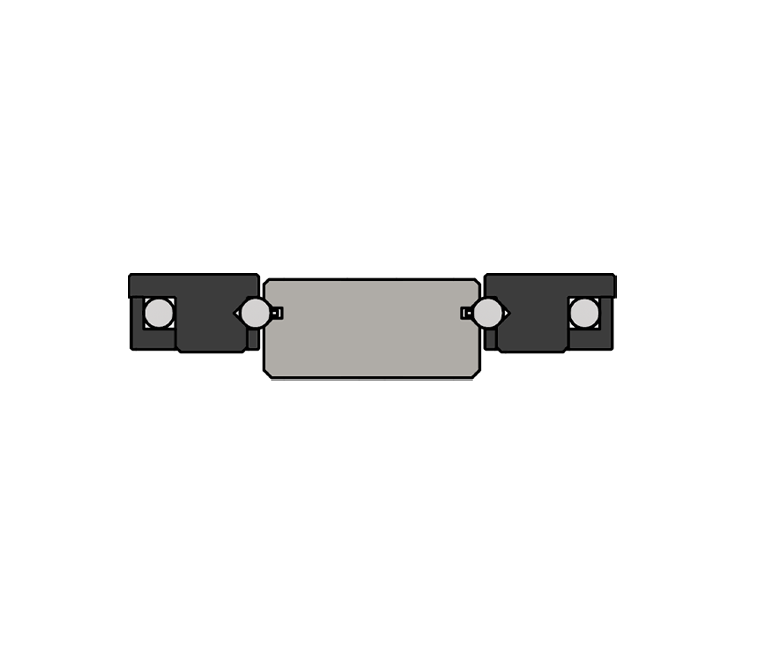

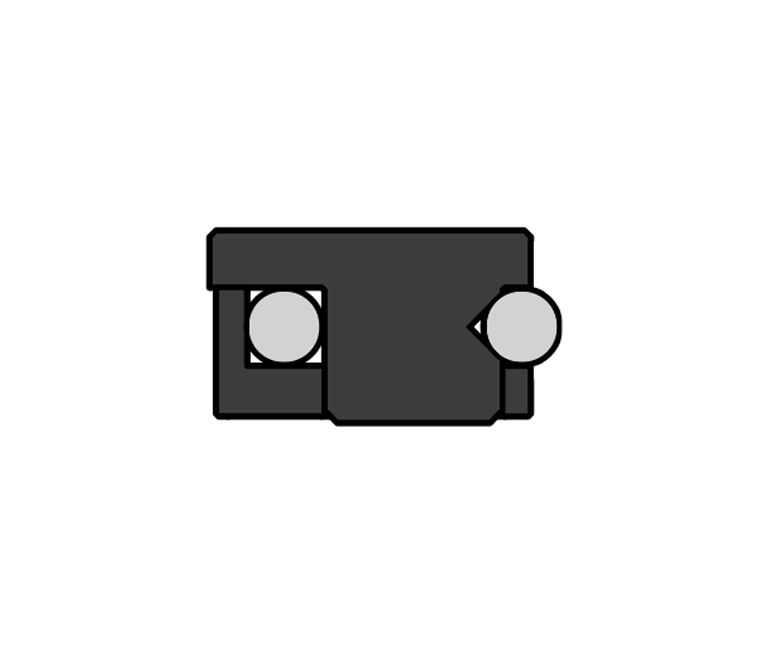

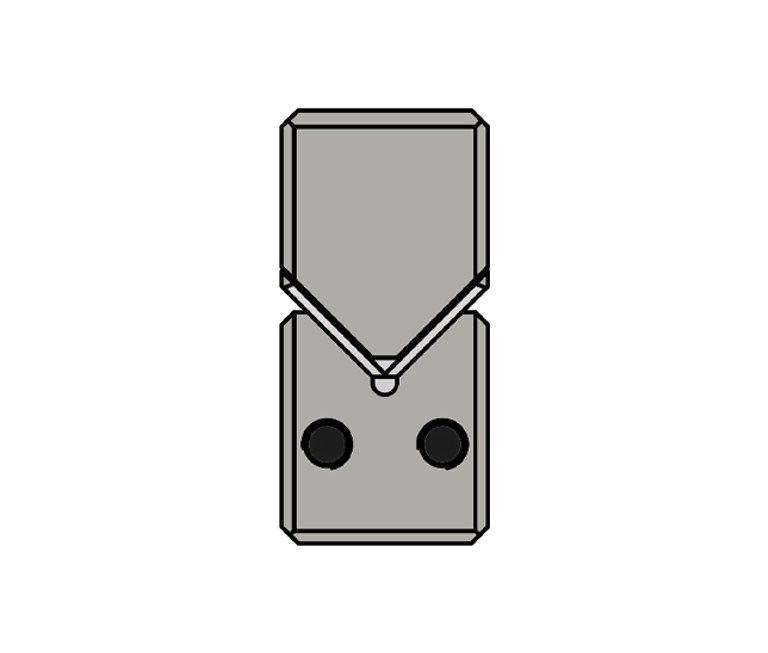

Prismatic Rail

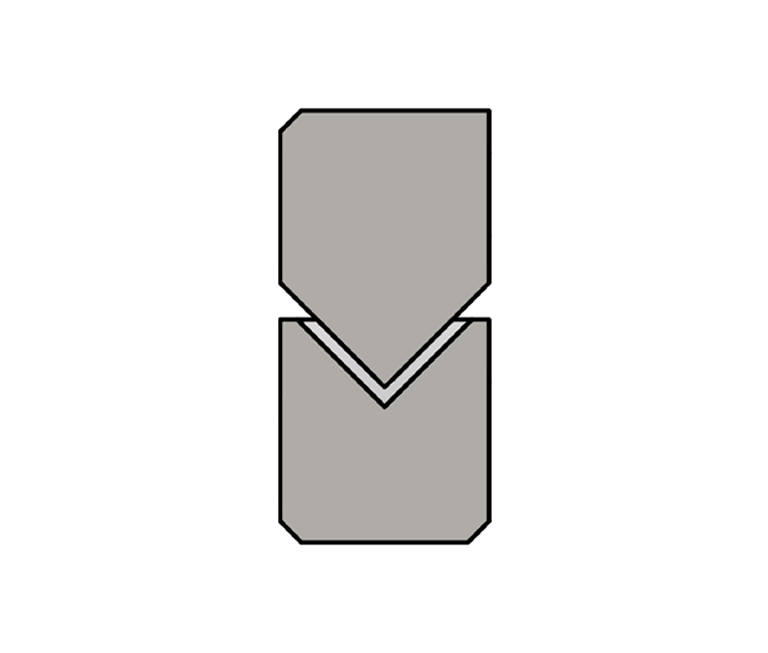

Prismatic rails with bearings and induction hardened v-shaped raceways.
Product Section Hardened Self alignment Slider Anticorrosion Load capacity [n] Fx Operating temperature
P
ROLLERS
15000
-10°C/+80°C

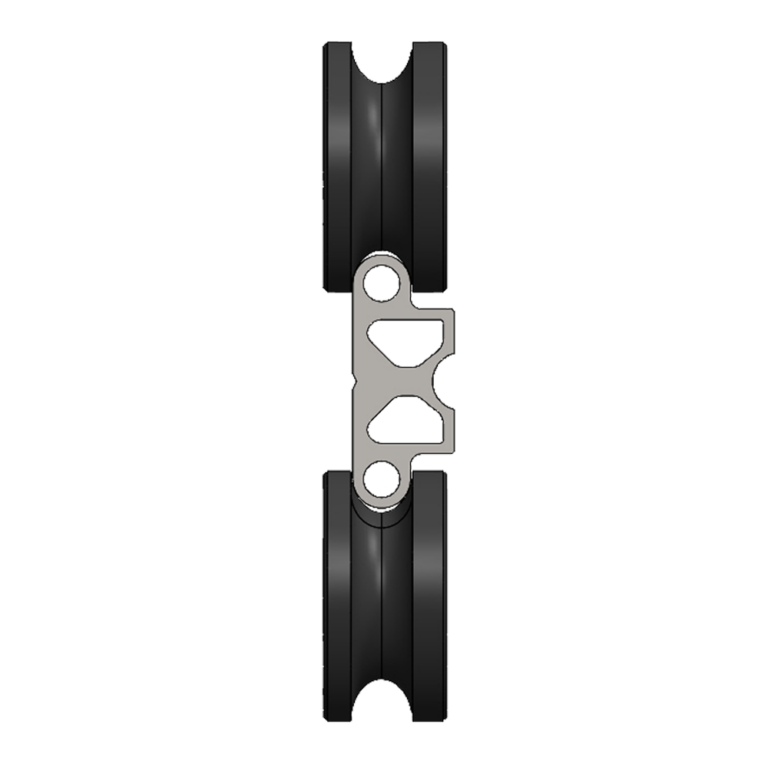

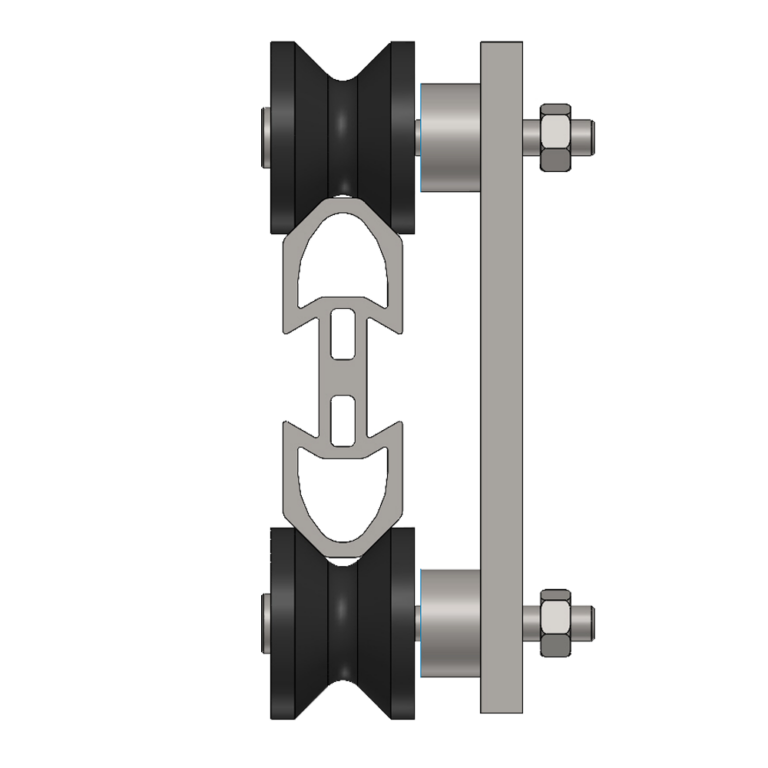

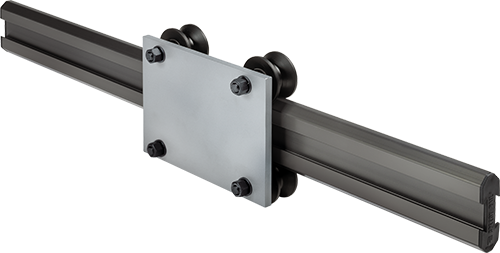

Speedy Rail

Self-supporting linear rail in extruded aluminum with steel rollers covered in plastic
Product Section Hardened Self alignment Slider Anticorrosion Load capacity [n] Fx Operating temperature
SR35
ROLLERS
400
-30°C/+80°C
SRC48
ROLLERS
540
-30°C/+80°C
SR
ROLLERS
14482
-30°C/+80°C

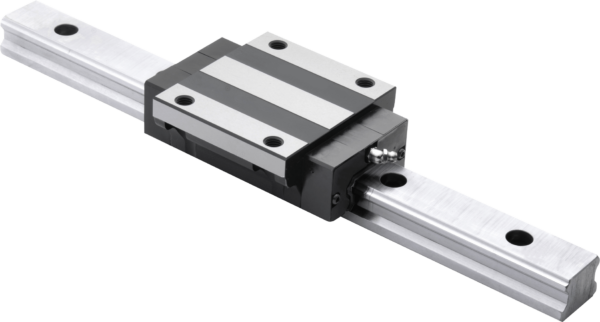

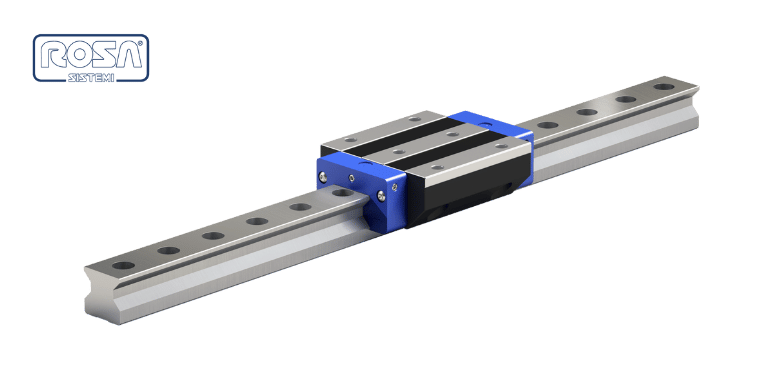

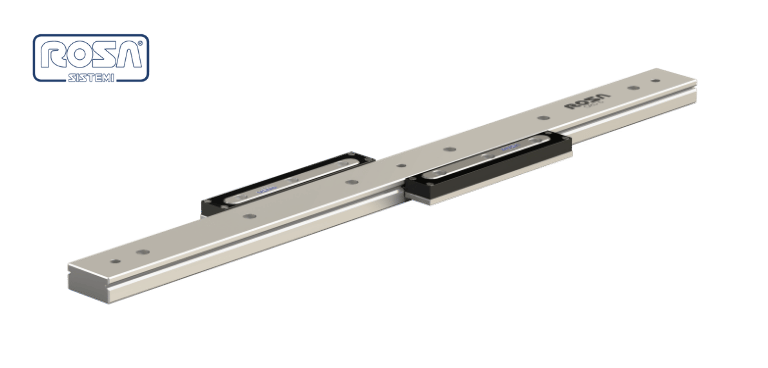

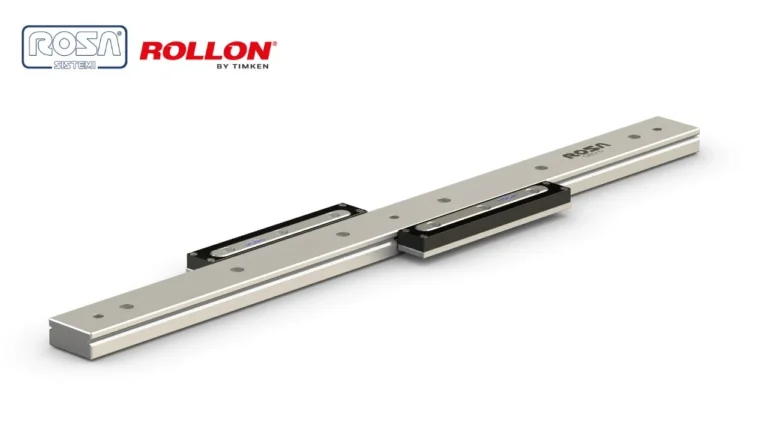

Mono Rail

Re-circulating ball profiled linear rails with high load capacity
Product Section Hardened Self alignment Slider Anticorrosion Load capacity [n] Fx Operating temperature
MR
BALLS
249000
-10°C/+60°C
MMR
BALLS
8385
-20°C/+80°C

Find out the technical details and
select the right Linear Rail.
Get full access to CAD and 3D models.
