Modules linéaires motorisés

Axes linéaires, disponibles avec un entraînement par courroie crantée, vis à billes ou pignon-crémaillère, s’adaptant aux spécificités client en termes de précision, de vitesse, de charge et d’environnement de travail et mettant en oeuvre différents systèmes de guidage.

Most Wanted

Plus System

Plus System

Axes linéaires hautes performances à entraînement par courroie crantée en polyuréthane renforcée acier.
ProduitGuidages linéairesEntraînementProtectionCapacité de charge [n] FxVitesse max. de translationAccélération Max. [m/s2]Répétabilité [mm]
ELM
BILLES
COURROIE CRANTÉE
PROTÉGÉ
4980
5
50
± 0.05
ROBOT
BILLES
COURROIE CRANTÉE
PROTÉGÉ
9545
5
50
± 0.05
SC
BILLES
COURROIE CRANTÉE
SEMI-PROTÉGÉ
5810
5
50
± 0.05

Clean Room System

Axes linéaires à courroie certifiés pour Salles Blanches
ProduitGuidages linéairesEntraînementProtectionCapacité de charge [n] FxVitesse max. de translationAccélération Max. [m/s2]Répétabilité [mm]
ONE
BILLES
COURROIE CRANTÉE
PROTÉGÉ AVEC MISE SOUS VIDE
4980
5
50
± 0.05

Smart System

Axes linéaires hautes performances avec entraînement par courroie crantée.
ProduitGuidages linéairesEntraînementProtectionCapacité de charge [n] FxVitesse max. de translationAccélération Max. [m/s2]Répétabilité [mm]
E-SMART
BILLES
COURROIE CRANTÉE
4980
4
50
± 0.05
R-SMART
BILLES
COURROIE CRANTÉE
9960
4
50
± 0.05
S-SMART
BILLES
COURROIE CRANTÉE
SEMI-PROTÉGÉ
2523
4
50
± 0.05

Eco System

Axe linéaire pour course importante
ProduitGuidages linéairesEntraînementProtectionCapacité de charge [n] FxVitesse max. de translationAccélération Max. [m/s2]Répétabilité [mm]
ECO
BILLES / GALETS
COURROIE CRANTÉE
SEMI-PROTÉGÉ
4565
5
50
± 0.05

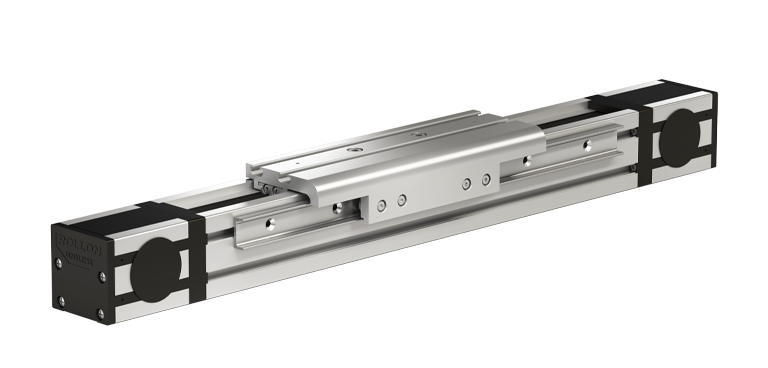

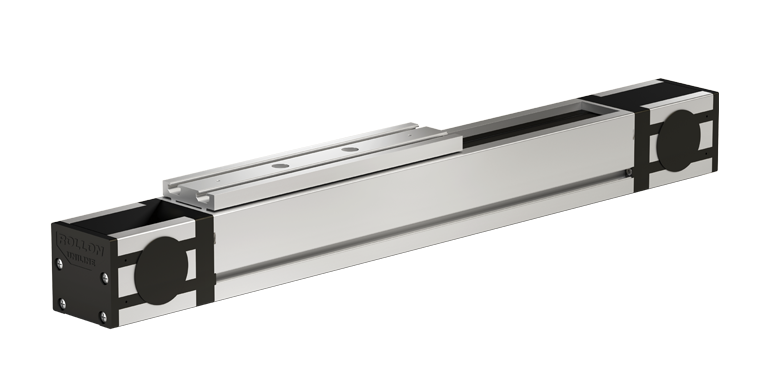

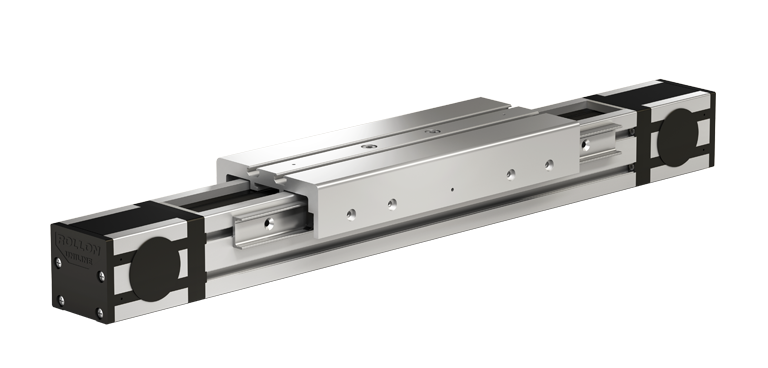

Uniline System

Axes linéaires compact à entraînement par courroie
ProduitGuidages linéairesEntraînementProtectionCapacité de charge [n] FxVitesse max. de translationAccélération Max. [m/s2]Répétabilité [mm]
A
GALETS
COURROIE CRANTÉE
SEMI-PROTÉGÉ
19360
7
15
C
GALETS
COURROIE CRANTÉE
SEMI-PROTÉGÉ
19360
7
15
E
GALETS
COURROIE CRANTÉE
SEMI-PROTÉGÉ
19360
7
15
ED
GALETS
COURROIE CRANTÉE
SEMI-PROTÉGÉ
19360
7
15
H
GALETS
SEMI-PROTÉGÉ
19360
7
15

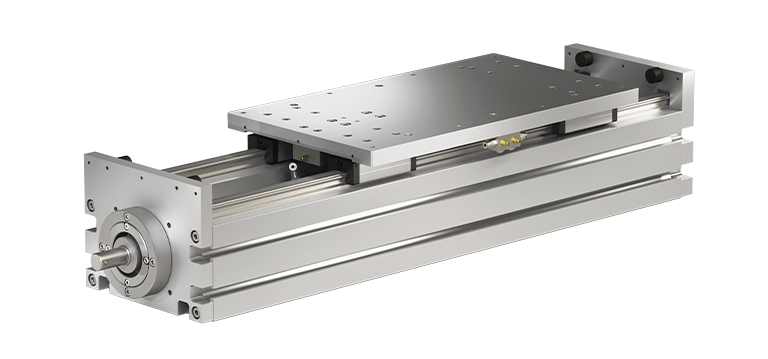

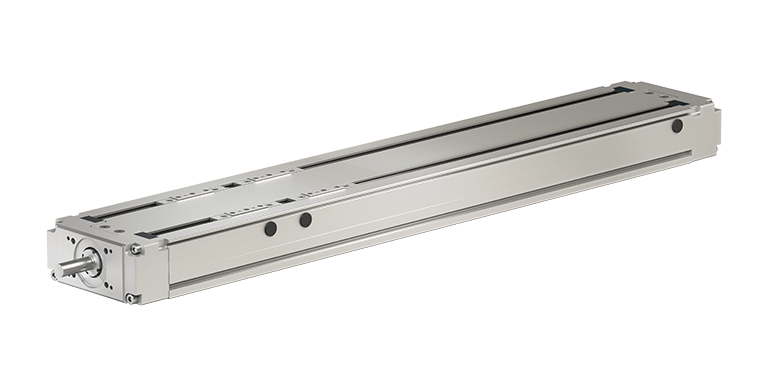

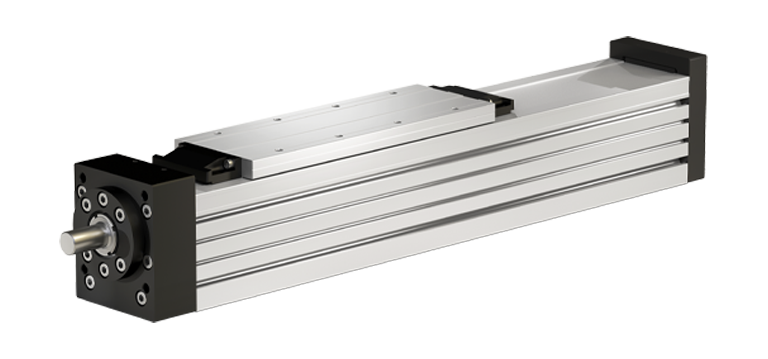

Precision System

Tables linéaires de haute précision à entraînement par vis à billes
ProduitGuidages linéairesEntraînementProtectionCapacité de charge [n] FxVitesse max. de translationAccélération Max. [m/s2]Répétabilité [mm]
TH
BALLSBILLES
BALL SCREW
SEMI-PROTÉGÉ
32600
± 0,005
TT
BILLES
BALL SCREW
SEMI-PROTÉGÉ
30500
2,5
± 0,005
TV
BILLES
BALL SCREW
SEMI-PROTÉGÉ
11538
2,5
± 0,01
TVS
BILLES
BALL SCREW
SEMI-PROTÉGÉ
66300
5
± 0,02

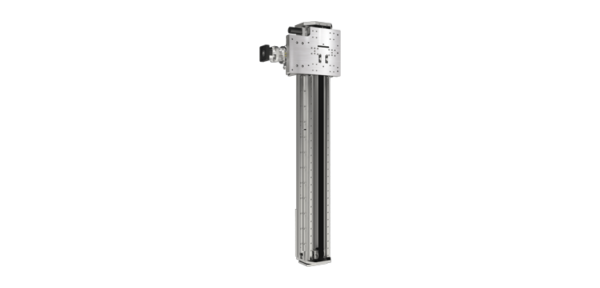

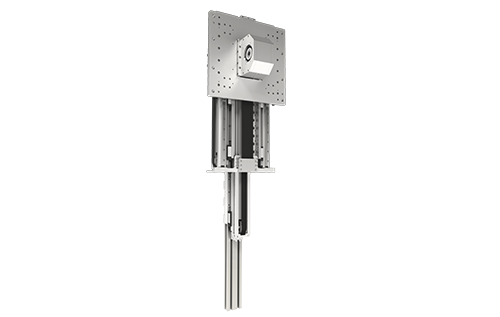

Telescopic System

Idéal pour les applications où l'espace entre la machine et le plafond est limité.
ProduitGuidages linéairesEntraînementProtectionCapacité de charge [n] FxVitesse max. de translationAccélération Max. [m/s2]Répétabilité [mm]
TLS V
BILLES
COURROIE CRANTÉE/CRÉMAILLÈRE
6
12
± 0.05
TLS H
BILLES
COURROIE CRANTÉE
6
20
± 0.3

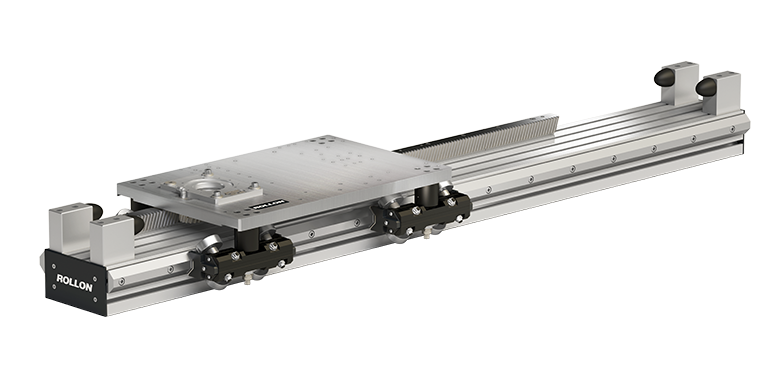

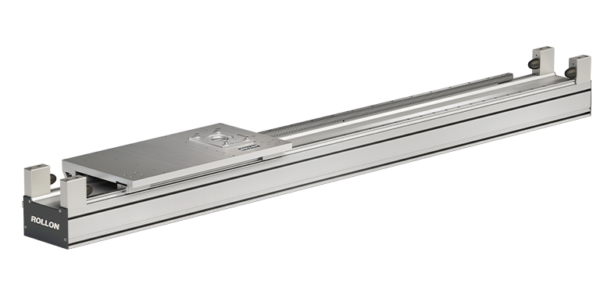

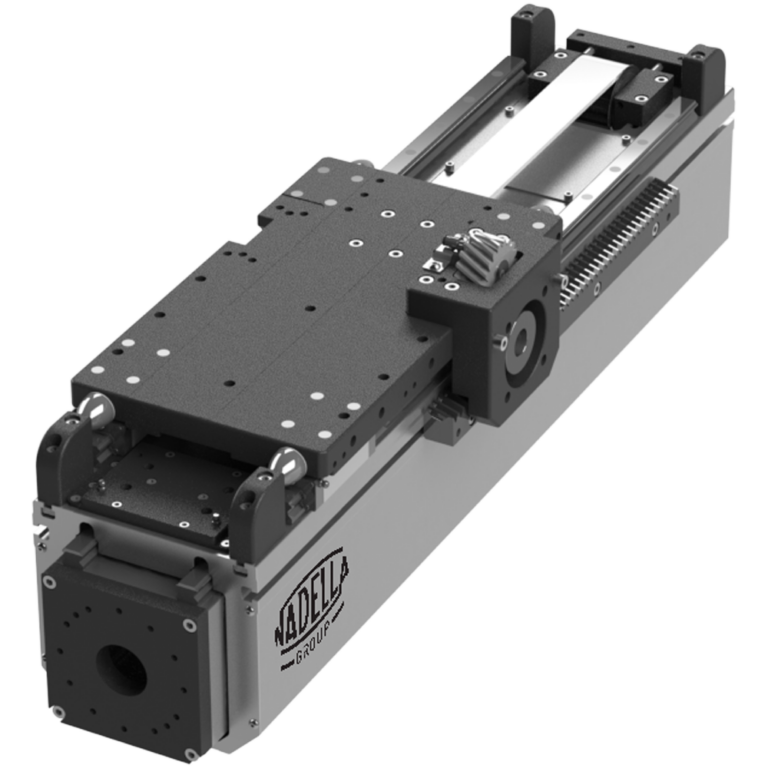

Tecline

Axes linéaires à entraînement par pignon crémaillère. Guidage à galets ou à recirculation de billes
ProduitGuidages linéairesEntraînementProtectionCapacité de charge [n] FxVitesse max. de translationAccélération Max. [m/s2]Répétabilité [mm]
PAR
GALETS
CRÉMAILLÈRE
10989
3
6
± 0.05
PAS
BILLES
10989
3
6
± 0.05

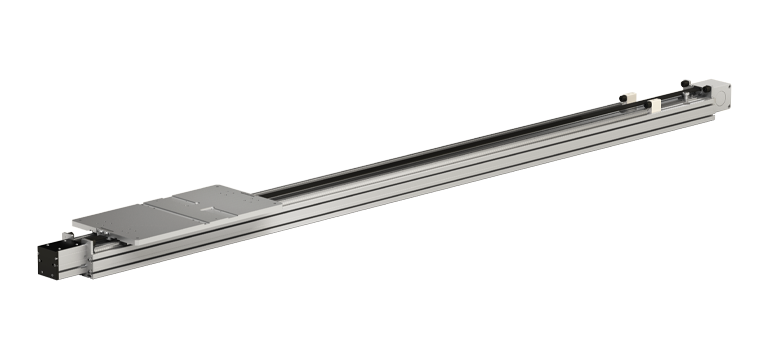

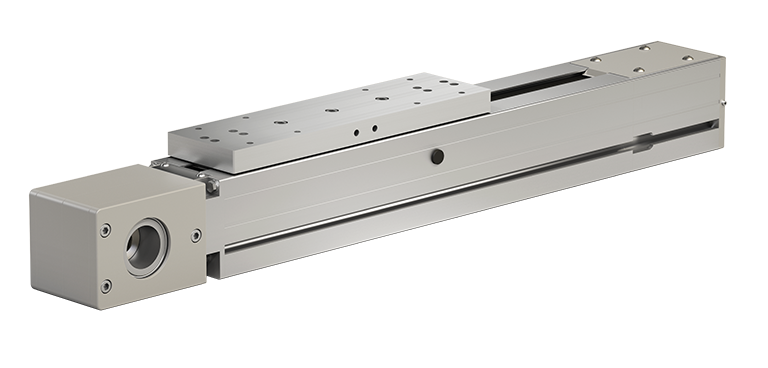

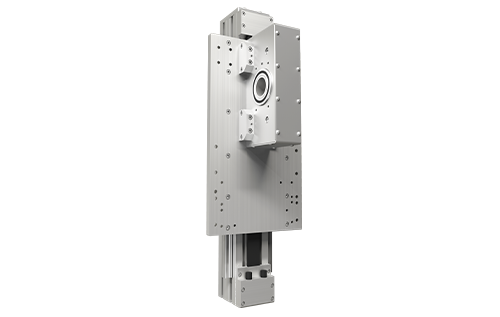

Modline

Axe linéaire à entraînement par courroie. Guidage à galets ou à recirculation de billes.
ProduitGuidages linéairesEntraînementProtectionCapacité de charge [n] FxVitesse max. de translationAccélération Max. [m/s2]Répétabilité [mm]
MCR
GALETS
COURROIE CRANTÉE
SEMI-PROTÉGÉ
3984
5
50
± 0.01
MCH
BILLES
COURROIE CRANTÉE
SEMI-PROTÉGÉ
3984
5
50
± 0.01
TCR TCS
BILLES / GALETS
COURROIE CRANTÉE
9960
5
50
± 0.01
ZCH
BILLES
COURROIE CRANTÉE
7470
4
25
± 0.01
ZCR
GALETS
COURROIE CRANTÉE
7470
4
25
± 0.01

Speedy Rail A

Axe linéaire autoportant en aluminium extrudé équipé de galets en acier avec revêtement plastique.
ProduitGuidages linéairesEntraînementProtectionCapacité de charge [n] FxVitesse max. de translationAccélération Max. [m/s2]Répétabilité [mm]
SAB
GALETS
COURROIE CRANTÉE
4980
10
ZSY
GALETS
COURROIE CRANTÉE
4980
8
8
SAR
GALETS
CRÉMAILLÈRE
1905
3
10
± 0,15
