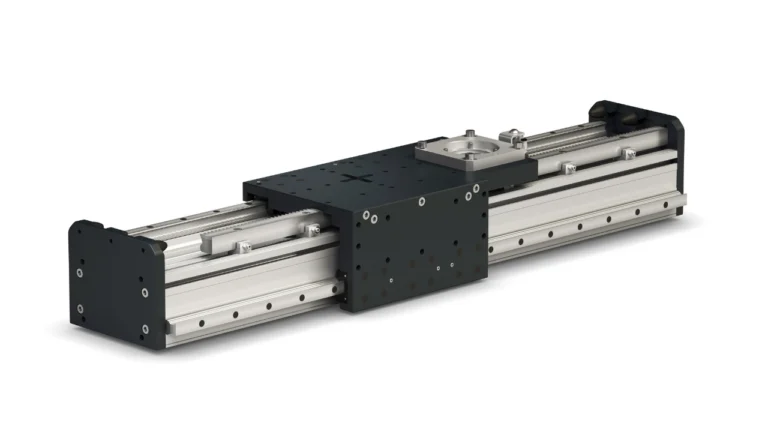

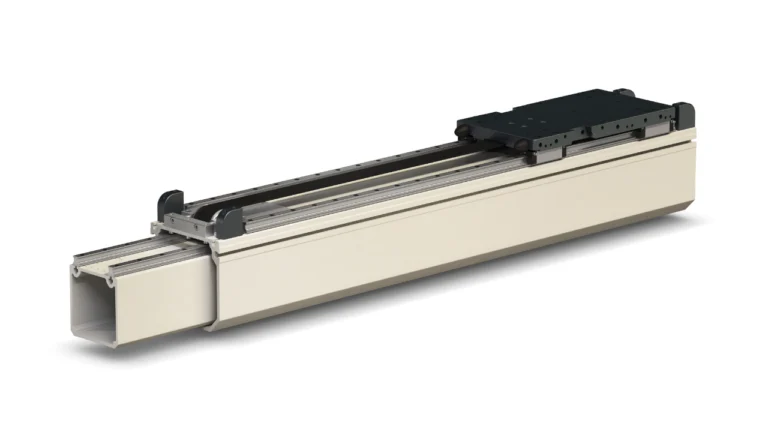

Linear actuators with different guide configurations and drives, available with belt, screw or rack and pinion drives according to different needs in terms of precision and speed. Guides with bearings or ball recirculating systems for different load capacities and critical environments.
| Product | Linear Motion System | Driving | Protection | Load capacity [n] Fx | Max. Speed [m/s] | Max. Acceleration [m/s2] | Repeatability Accuracy [mm] |
|---|---|---|---|---|---|---|---|
ELM | BALLS | TOOTHED BELT | PROTECTED | 4980 | 5 | 50 | ± 0.05 |
ROBOT | BALLS | TOOTHED BELT | PROTECTED | 9545 | 5 | 50 | ± 0.05 |
SC | BALLS | TOOTHED BELT | SEMI-PROTECTED | 5810 | 5 | 50 | ± 0.05 |
| Product | Linear Motion System | Driving | Protection | Load capacity [n] Fx | Max. Speed [m/s] | Max. Acceleration [m/s2] | Repeatability Accuracy [mm] |
|---|---|---|---|---|---|---|---|
ONE | BALLS | TOOTHED BELT | PROTECTED WITH SUCTION | 4980 | 5 | 50 | ± 0.05 |
| Product | Linear Motion System | Driving | Protection | Load capacity [n] Fx | Max. Speed [m/s] | Max. Acceleration [m/s2] | Repeatability Accuracy [mm] |
|---|---|---|---|---|---|---|---|
E-SMART | BALLS | TOOTHED BELT | 4980 | 4 | 50 | ± 0.05 | |
R-SMART | BALLS | TOOTHED BELT | 9960 | 4 | 50 | ± 0.05 | |
S-SMART | BALLS | TOOTHED BELT | SEMI-PROTECTED | 2523 | 4 | 50 | ± 0.05 |
| Product | Linear Motion System | Driving | Protection | Load capacity [n] Fx | Max. Speed [m/s] | Max. Acceleration [m/s2] | Repeatability Accuracy [mm] |
|---|---|---|---|---|---|---|---|
ECO | BALLS/ROLLERS | TOOTHED BELT | SEMI-PROTECTED | 4565 | 5 | 50 | ± 0.05 |
| Product | Linear Motion System | Driving | Protection | Load capacity [n] Fx | Max. Speed [m/s] | Max. Acceleration [m/s2] | Repeatability Accuracy [mm] |
|---|---|---|---|---|---|---|---|
A | ROLLERS | TOOTHED BELT | SEMI-PROTECTED | 19360 | 7 | 15 | |
C | ROLLERS | TOOTHED BELT | SEMI-PROTECTED | 19360 | 7 | 15 | |
E | ROLLERS | TOOTHED BELT | SEMI-PROTECTED | 19360 | 7 | 15 | |
ED | ROLLERS | TOOTHED BELT | SEMI-PROTECTED | 19360 | 7 | 15 | |
H | ROLLERS | SEMI-PROTECTED | 19360 | 7 | 15 |
| Product | Linear Motion System | Driving | Protection | Load capacity [n] Fx | Max. Speed [m/s] | Max. Acceleration [m/s2] | Repeatability Accuracy [mm] |
|---|---|---|---|---|---|---|---|

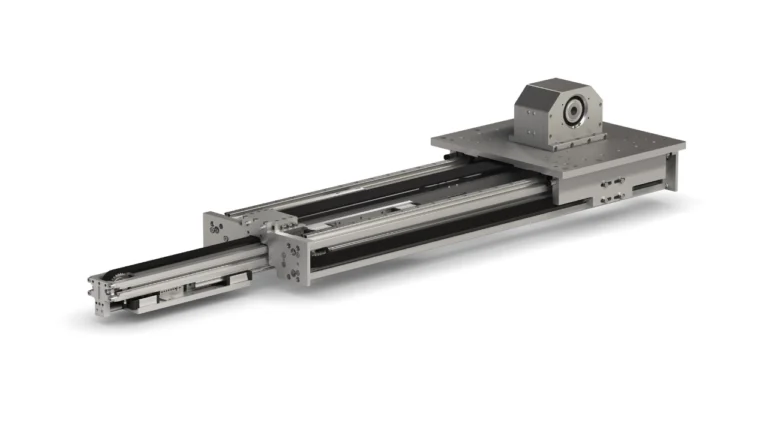

TLS V | BALLS | TOOTHED BELT/RACK AND PINION | 6 | 12 | ± 0.05 | ||
TLS H | BALLS | TOOTHED BELT | 6 | 20 | ± 0.3 |
| Product | Linear Motion System | Driving | Protection | Load capacity [n] Fx | Max. Speed [m/s] | Max. Acceleration [m/s2] | Repeatability Accuracy [mm] |
|---|---|---|---|---|---|---|---|
TH | BALLS | BALL SCREW | SEMI-PROTECTED | 32600 | 2 | ± 0,005 | |
TT | BALLS | BALL SCREW | SEMI-PROTECTED | 30500 | 2,5 | ± 0,005 | |
TV | BALLS | BALL SCREW | SEMI-PROTECTED | 11538 | 2,5 | ± 0,01 | |
TVS | BALLS | BALL SCREW | SEMI-PROTECTED | 66300 | 1 | 5 | ± 0,02 |
| Product | Linear Motion System | Driving | Protection | Load capacity [n] Fx | Max. Speed [m/s] | Max. Acceleration [m/s2] | Repeatability Accuracy [mm] |
|---|---|---|---|---|---|---|---|

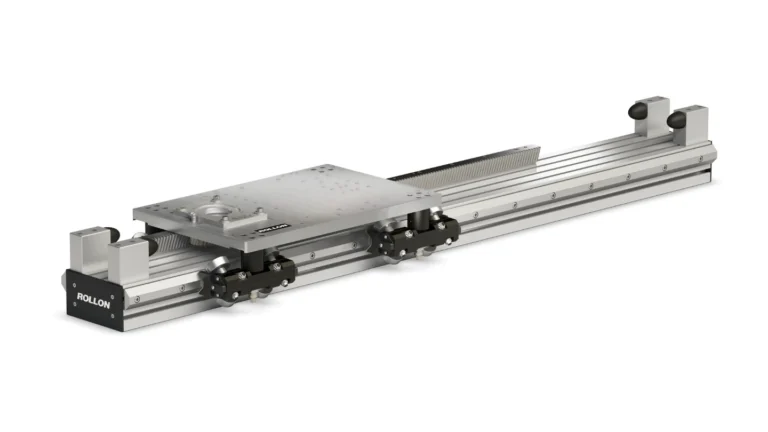

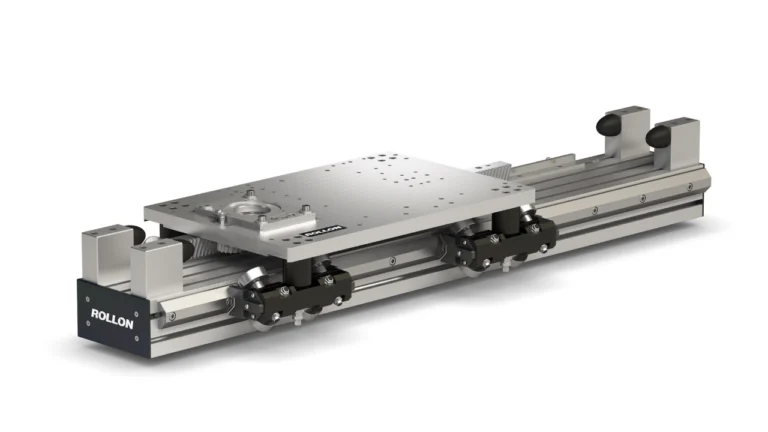

PAR | BALLS/ROLLERS | TOOTHED BELT/RACK AND PINION | 10989 | 3 | 6 | ± 0.05 | |

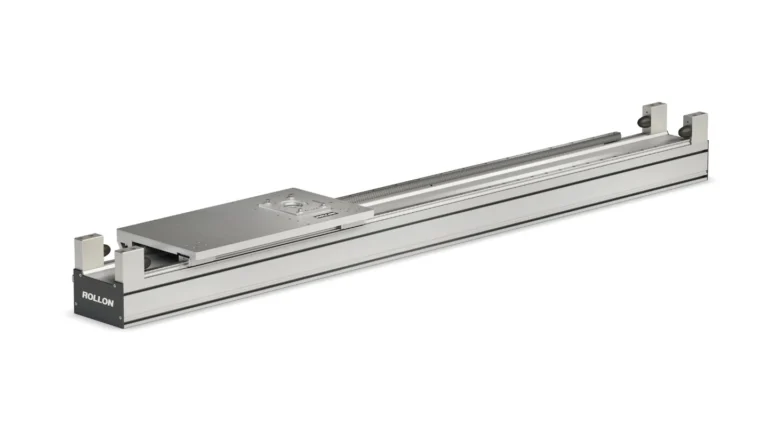

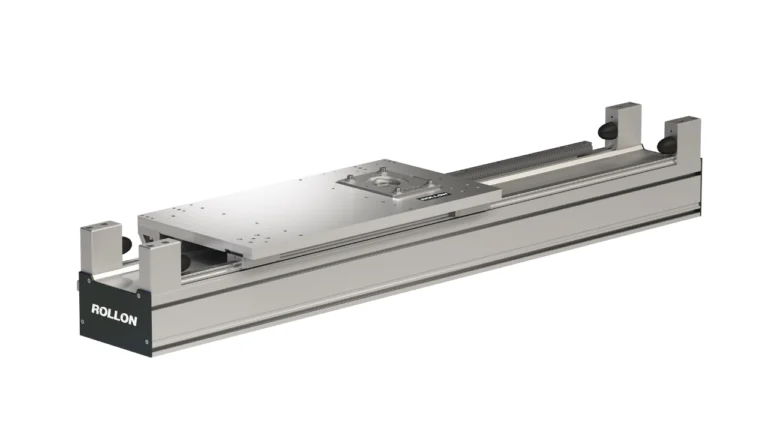

PAS | BALLS/ROLLERS | TOOTHED | 10989 | 3 | 6 | ± 0.05 |
| Product | Linear Motion System | Driving | Protection | Load capacity [n] Fx | Max. Speed [m/s] | Max. Acceleration [m/s2] | Repeatability Accuracy [mm] |
|---|---|---|---|---|---|---|---|
MCR | BALLS/ROLLERS | TOOTHED BELT | SEMI-PROTECTED | 3984 | 5 | 50 | ± 0.01 |
MCH | BALLS/ROLLERS | TOOTHED | SEMI-PROTECTED | 3984 | 5 | 50 | ± 0.01 |
TCR TCS | BALLS/ROLLERS | TOOTHED BELT | 9960 | 5 | 50 | ± 0.01 | |
ZCH | BALLS/ROLLERS | TOOTHED | 7470 | 4 | 25 | ± 0.01 | |
ZCR | BALLS/ROLLERS | TOOTHED BELT | 7470 | 4 | 25 | ± 0.01 |
| Product | Linear Motion System | Driving | Protection | Load capacity [n] Fx | Max. Speed [m/s] | Max. Acceleration [m/s2] | Repeatability Accuracy [mm] |
|---|---|---|---|---|---|---|---|
SAB | ROLLERS | TOOTHED BELT/RACK AND PINION | 4980 | 15 | 10 | ± 0,02 | |
ZSY | ROLLERS | TOOTHED | 4980 | 8 | 8 | ± 0,02 | |

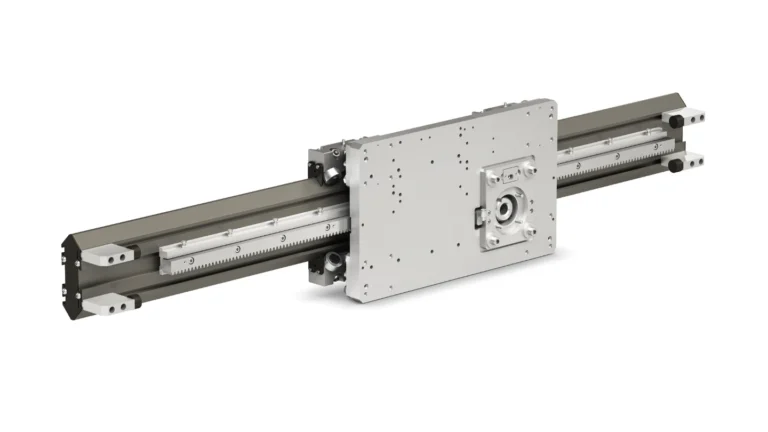

SAR | ROLLERS | RACK AND PINION | 1905 | 3 | 10 | ± 0,15 |
