Smart System

High performance
and simple design

High performance linear units with steel re-enforced
driving belt transmission.

The ideal solution for those application where high dynamics and load capacities meet cost effectiveness.

High dynamics: V= 15m/s, A=10m/s2

High Dynamics

• Speed up to 4 m/s
• Acceleration up to 50 m/s²
Smart System
vertical solution

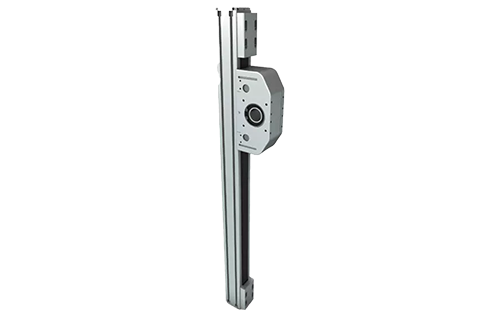

Vertical solution available

S-Smart is the ideal solution for vertical movements:
• fixed carriage and movable profile
• omega belt system”
icon load capacity

High load capacity

Thanks to recirculating ball
guides motion system.
Smart System
Icon Self supporting

High repeatability and accuracy

Smart System actuators have a repeatability
accuracy of ±0,05 mm



Smart System Rollon

Find out the technical details and
select your Smart System.

Product Linear Motion System Driving Protection Load capacity [n] Max. Speed [m/s] Max. Acceleration [m/s2] Repeatability Accuracy [mm]

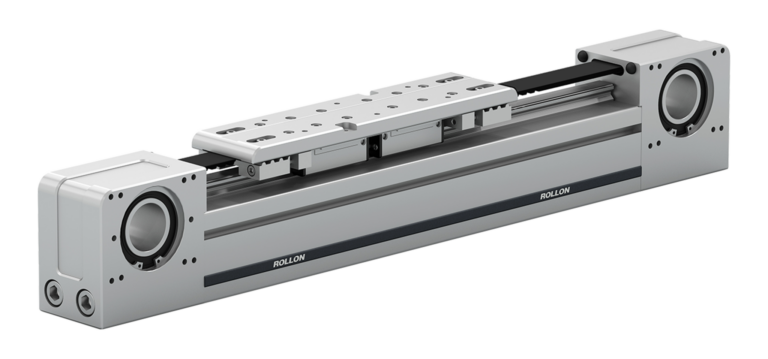

E-SMART
BALLS
TOOTHED BELT
4980
4
50
± 0.05

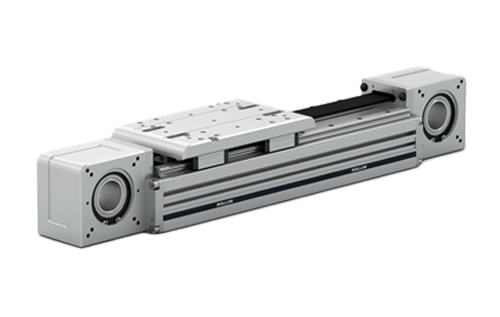

R-SMART
BALLS
TOOTHED BELT
9960
4
50
± 0.05
S-SMART
BALLS
TOOTHED BELT
SEMI-PROTECTED
2523
4
50
± 0.05
