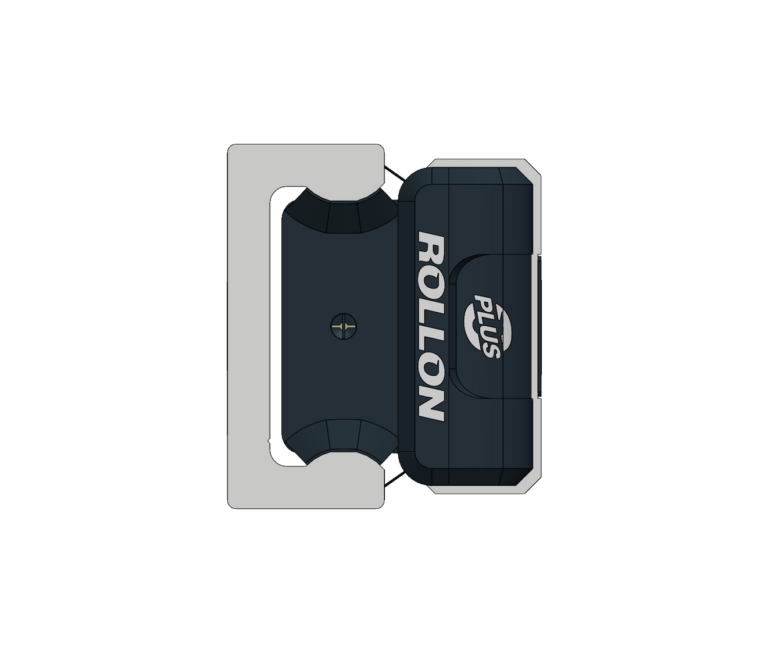

Compact Rail & Compact Rail Plus

No More Misalignment

Self-aligning linear guides with bearings and a C-profile made of cold-drawn carbon steel, with introduction hardened and ground raceways.

It simplifies the project, improves the perfomance and reduces the application costs.

Self-aligning system

  • Select the most suitable structure for your project
  • Avoid machining the mounting surface
  • Reduce the assembly time

Optimal Best reliability
in dirty environments

  • Lateral sealing for a greater protection against contaminants
  • New self-centering wipers for an optimal cleaning of the raceways

Long lifetime

Induction hardened raceways with 1.2 mm effective depth and hardness between 58 and 62 HRC.

High Dynamics

  • Speed up to 9 m/s
  • Acceleration up to 20 m/s2
Low maintenance

Low maintenance

Uniquely quiet with ground raceways

Uniquely quiet with ground raceways

Solid and sturdy

Solid and sturdy thanks to steel slider body

icon plus

Available with double row ball bearings available for high load capacities

Find out the technical details and
select your Compact Rail.

Product Section Hardened Self alignment Slider Anticorrosion Load capacity [n] Operating temperature
TLC KLC ULC
ROLLERS
15000
-20°C/+120°C
TG/TMG
ROLLERS
10800
-20°C/+120°C
