Available versions

Telescopic rails

Over Extension

Features

Telescopic slides with four elements for extractions up to 200% with high rigidity and extensions from 150% to 200% of rail length.

Solutions available with hardened raceways, long life, and heavy duty applications.

Stainless steel solutions available for maximum corrosion resistance.

Full range of accessories available such as locking and damping systems.

DSE Telescopic Slide

H1C Telescopic Slide

H1T Telescopic Slide

NTU Telescopic Slide

NTSU Telescopic Slide

Available Versions

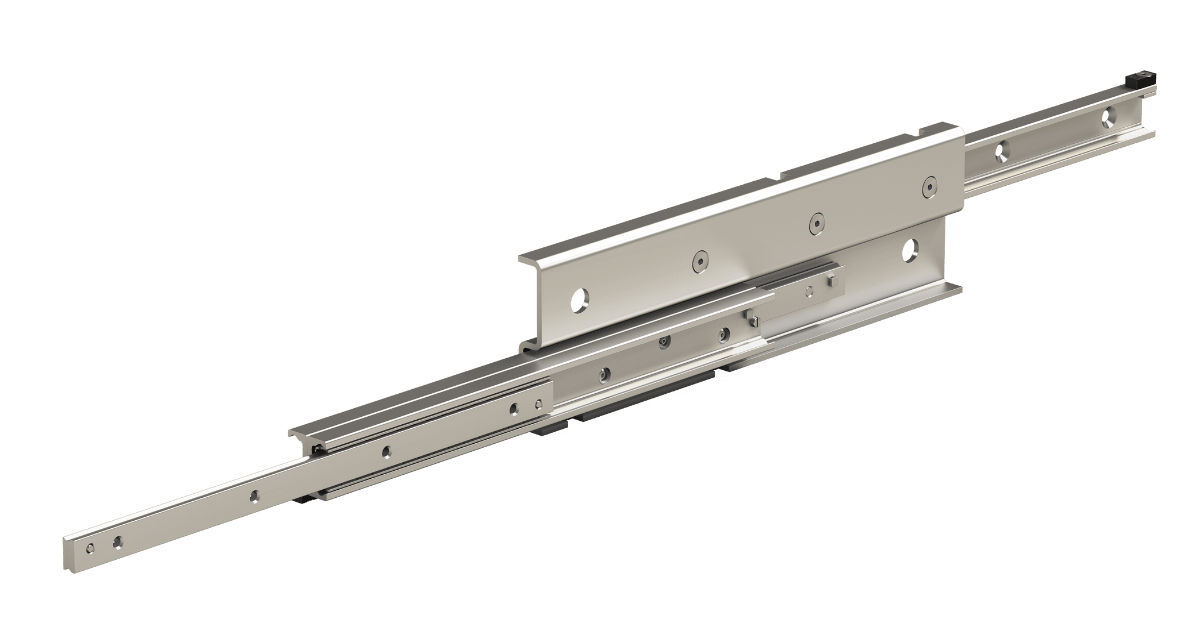

DSE

Telescopic rail with 150% length extension. It has high stiffness due to intermediate elements with high moment of inertia.

Select the size

CAD File Datasheet

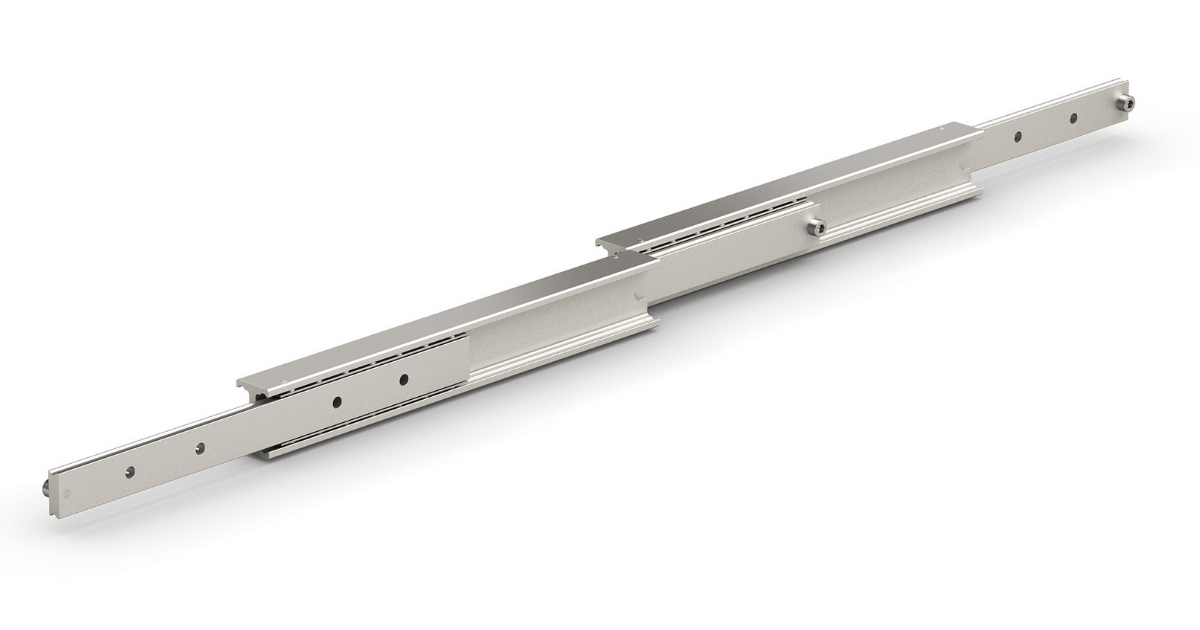

H1C

Telescopic rails with extension up to 200% of the length. By using intermediate elements with high moment of inertia, high rigidity is achieved.

Select the size

CAD File Datasheet

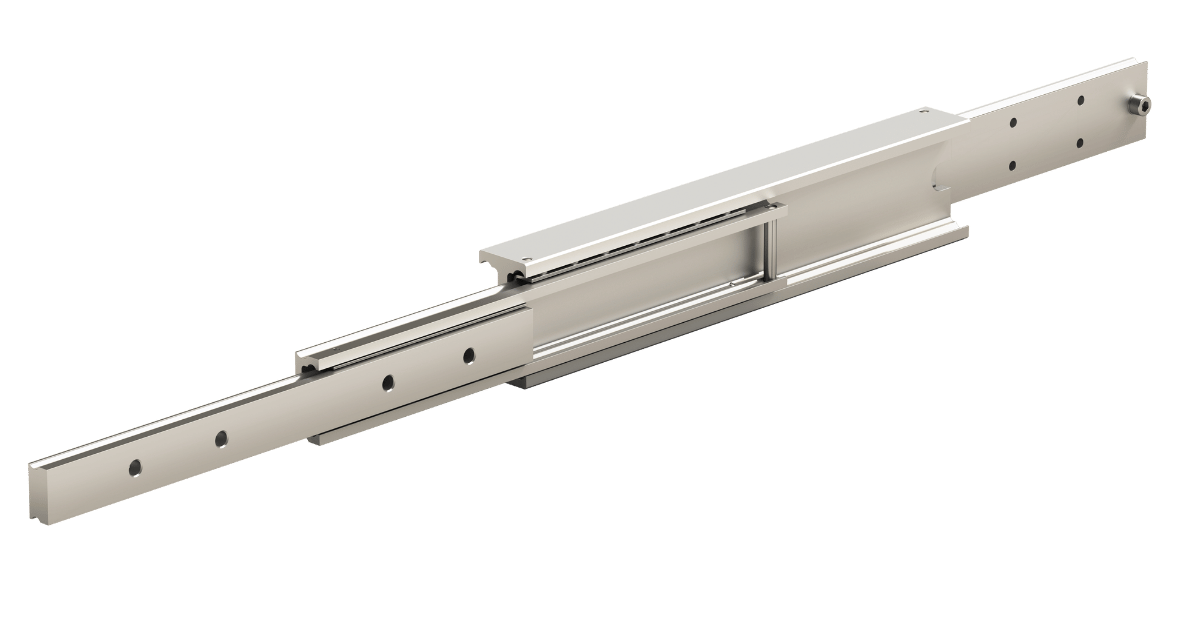

H1T

Telescopic rail with intermediate T-profile, extension up to 200%. Payload and stroke up to 700 kg and 3 m

Select the size

CAD File Datasheet

H1T-X

Telescopic rail with intermediate T-profile, extension up to 200%. Payload and stroke up to 420 kg and 3 m

Select the size

CAD File Datasheet

LRS71OE

Telescopic rail with a 150% extension of it’s length.

Select the size

CAD File Datasheet

NTU

Bended steel profile full extension telescopic slide.

Select the size

CAD File Datasheet

NTSU

Over extension telescopic slide up to 200%.

Select the size

CAD File Datasheet
