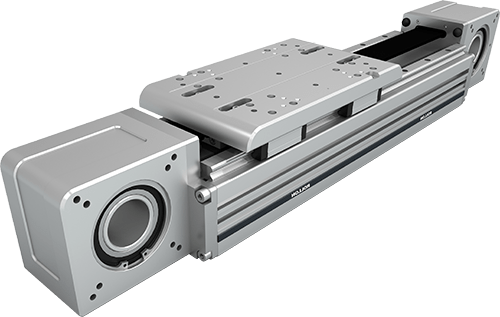

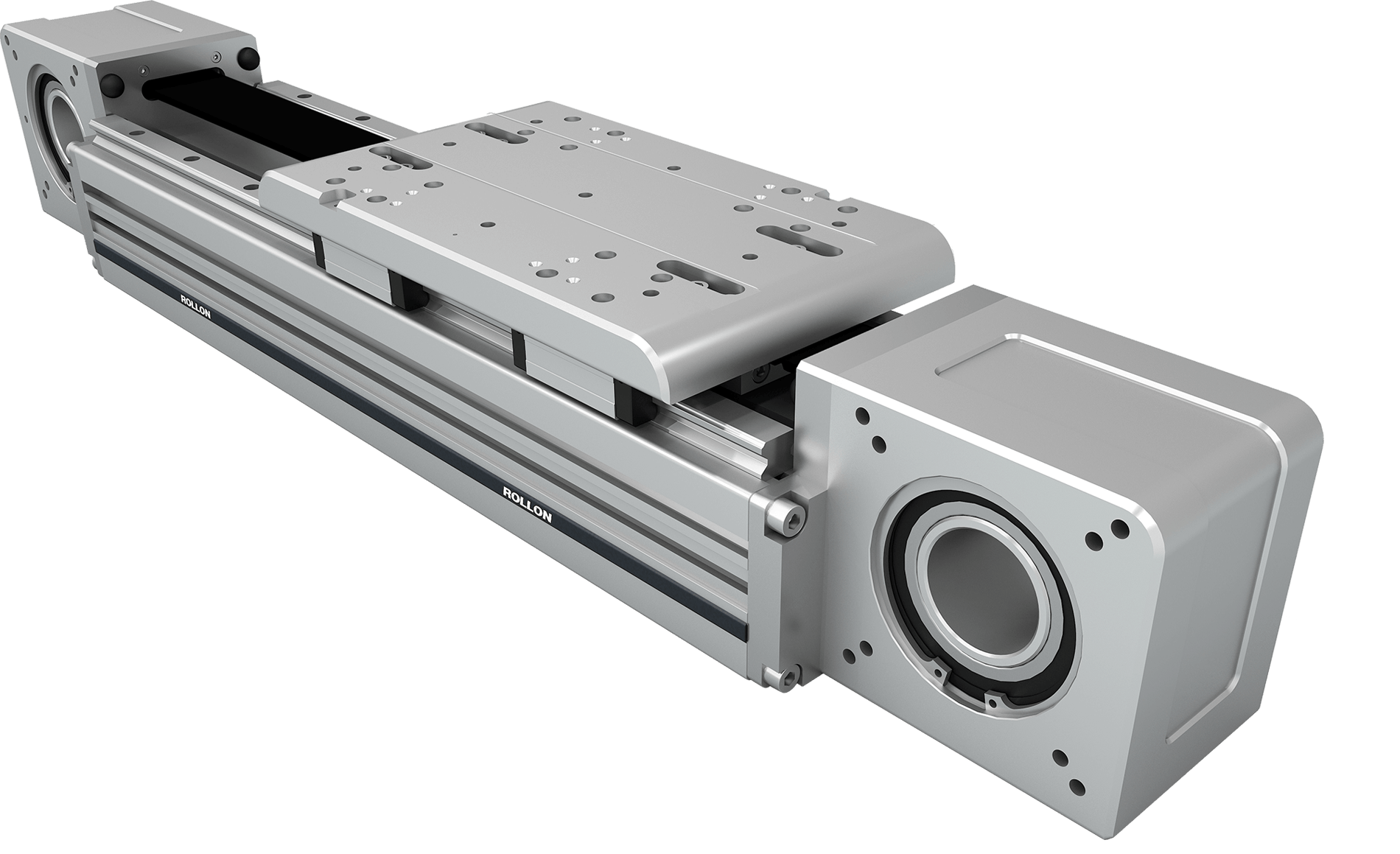

Smart System

Simple Design, High Performance

High performance linear units with steel re-enforced driving belt transmission.

Ideal for applications where high dynamics, load capacities and cost effectiveness are important.

High dynamics: V= 15m/s, A=10m/s2

High Dynamics

• Speed up to 4 m/s
• Acceleration up to 50 m/s²
vertical solution

Vertical solution available

S-Smart is the ideal solution for vertical movements:
• Fixed carriage and movable profile
• Omega belt system
icon load capacity

High load capacity

Due to the recirculating ball
guides motion system.
Smart System
Icon Self supporting

High repeatability and accuracy

Smart System actuators have a repeatability
accuracy of ±0,05 mm



Smart System Rollon

See technical details and
select your Smart System.

ProductLinear Motion SystemDrivingProtectionLoad capacity [n]Max. Speed [m/s]Max. Acceleration [m/s2]Repeatability Accuracy [mm]
E-SMART
BALS
TOOTHED BELT
4980
4
50
± 0.05
R-SMART
BALLS
TOOTHED BELT
9960
4
50
± 0.05
S-SMART
BALLS
TOOTHED BELT
SEMI-PROTECTED
2523
4
50
± 0.05
