Multi-Axis Systems

Multi-axis systems form the backbone of modern industrial automation, giving you complete control over movement in multiple directions. From basic two-axis setups to complex XYZ gantry systems, these solutions help you automate a wide range of manufacturing and assembly processes.

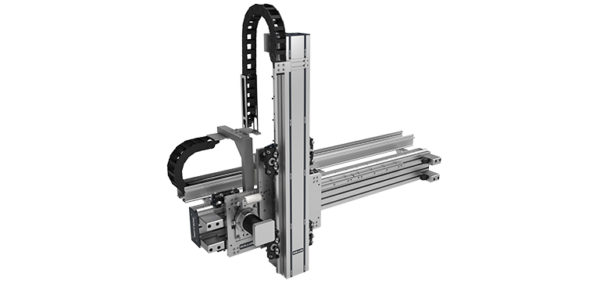

Each configuration matches different industrial needs. The YZ Portal, available in both aluminum and steel versions, lets you control vertical and horizontal movement.

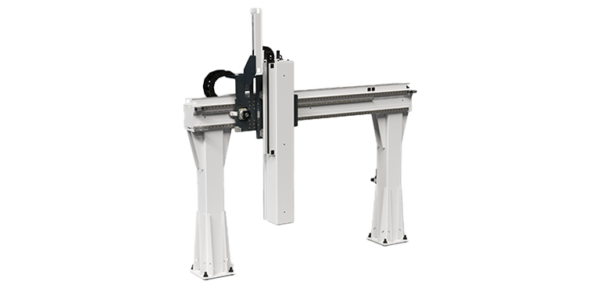

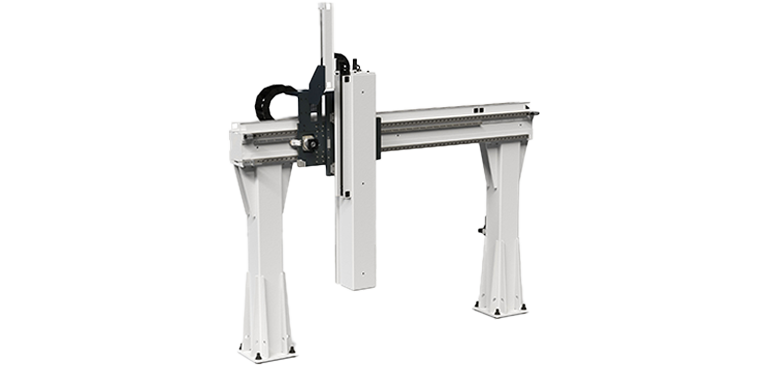

The aluminum model works well in applications needing a balance of speed and load capacity, while the steel version handles your heaviest workloads without compromising accuracy.

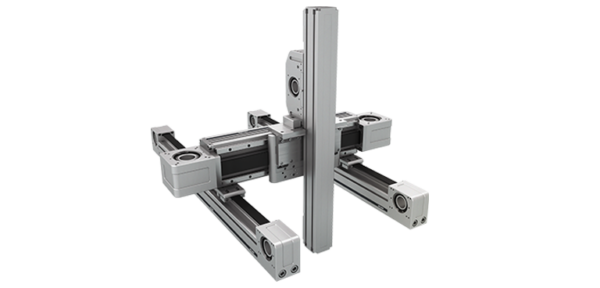

When your application demands movement across three dimensions, an XYZ gantry system delivers the flexibility you need.

These systems perform very well in pick and place machine operations, with high-speed performance and accurate positioning. You can select from belt drives, ball screws, and rack and pinion systems – matching your specific requirements for speed, accuracy, and load capacity.

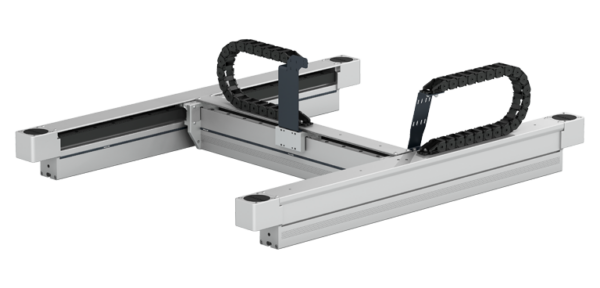

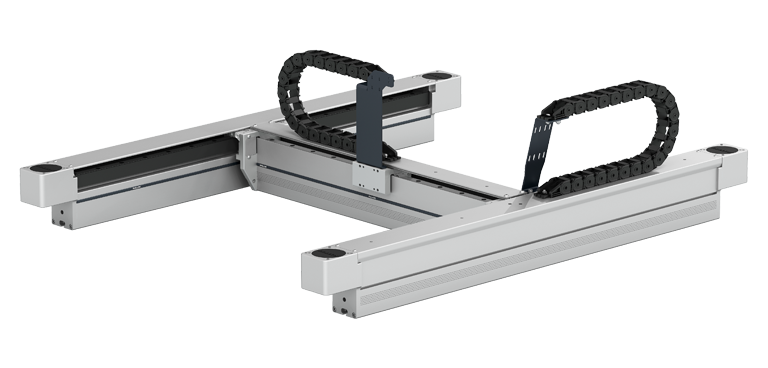

For specialized applications, the H-Bot design offers unique advantages. Using a single-belt drive system with a cantilever suspension system, it reaches impressive acceleration while maintaining stability across its operating area. The compact footprint makes it ideal for environments where space comes at a premium.

The strength of industrial automation multi-axis solutions comes in adaptability to different industrial roles.

Each system can be customized with different drive mechanisms, safety features, and control systems. A cantilever system might work best in one situation, while a full gantry setup might be better for another – the key is matching the right configuration to your specific needs.

Your production requirements will guide the choice between different models. Look at factors like:

• Load capacity and accuracy levels
• Space to operate and installation limitations
• Speed and acceleration needs
• Environmental conditions and durability requirements

These systems come pre-engineered and ready to integrate into your existing setup, minimizing downtime during installation. They’re built with maintenance in mind too, featuring accessible components and standardized parts that make upkeep and repairs straightforward.

Need help choosing a multi-axis system for your operation? Contact us for more information.
