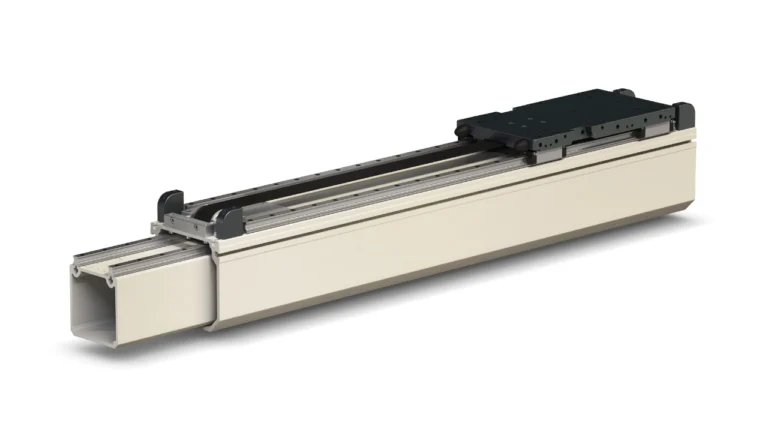

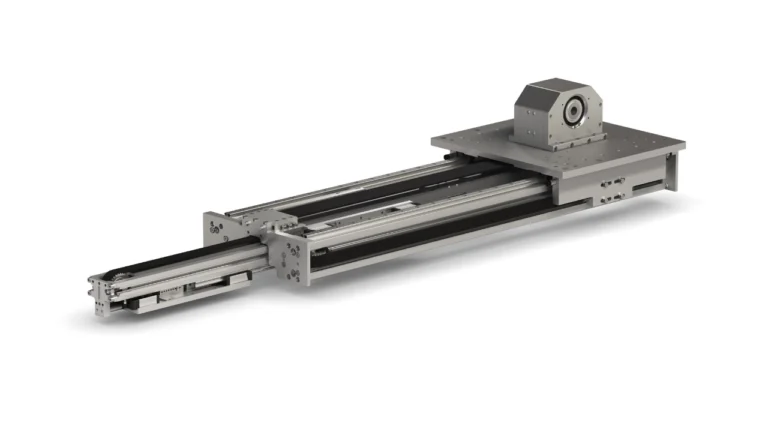

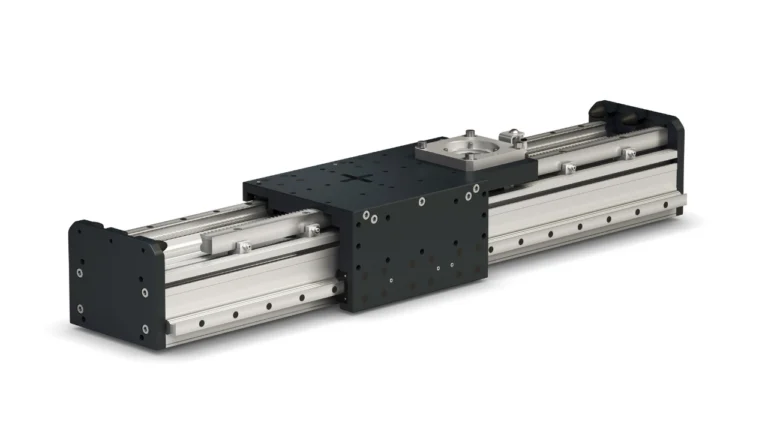

Linear actuators with different guide configurations and drives. Available with belt, ball screw or rack and pinion drives for different precision and speed requirements. Guides with bearings or ball recirculating systems for different load capacities and critical environments.
| Product | Linear Motion System | Driving | Protection | Load capacity [n] Fx | Max. Speed [m/s] | Max. Acceleration [m/s2] | Repeatability Accuracy [mm] |
|---|---|---|---|---|---|---|---|

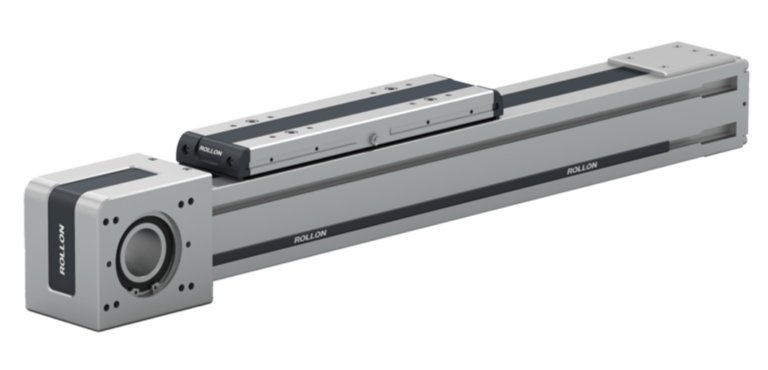

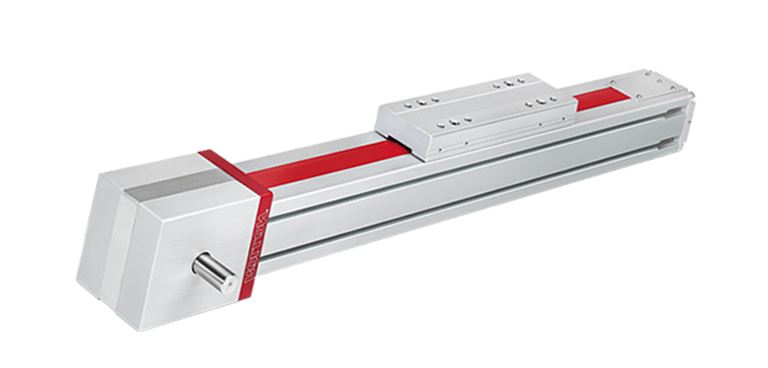

ELM | BALLS | TOOTHED BELT | PROTECTED | 4980 | 5 | 50 | ± 0.05 |
ROBOT | BALLS | TOOTHED BELT | PROTECTED | 9545 | 5 | 50 | ± 0.05 |
SC | BALLS | TOOTHED BELT | SEMI-PROTECTED | 5810 | 5 | 50 | ± 0.05 |
| Product | Linear Motion System | Driving | Protection | Load capacity [n] Fx | Max. Speed [m/s] | Max. Acceleration [m/s2] | Repeatability Accuracy [mm] |
|---|---|---|---|---|---|---|---|
ONE | BALLS | TOOTHED BELT | PROTECTED WITH SUCTION | 4980 | 5 | 50 | ± 0.05 |
| Product | Linear Motion System | Driving | Protection | Load capacity [n] Fx | Max. Speed [m/s] | Max. Acceleration [m/s2] | Repeatability Accuracy [mm] |
|---|---|---|---|---|---|---|---|

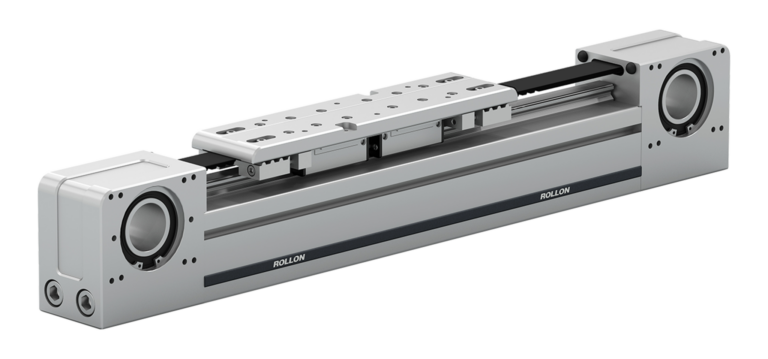

E-SMART | BALS | TOOTHED BELT | 4980 | 4 | 50 | ± 0.05 | |
R-SMART | BALLS | TOOTHED BELT | 9960 | 4 | 50 | ± 0.05 | |

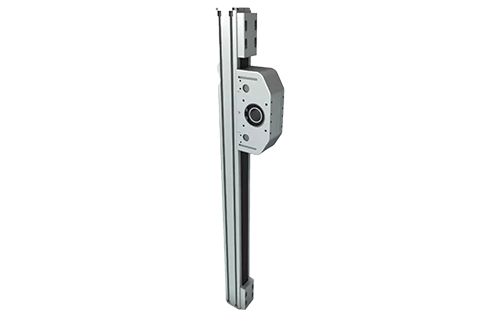

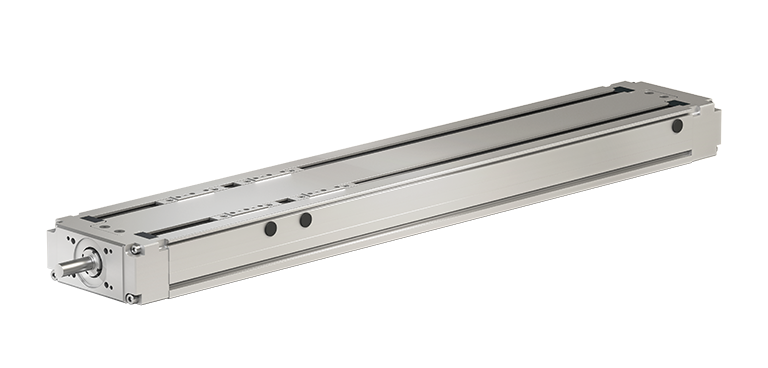

S-SMART | BALLS | TOOTHED BELT | SEMI-PROTECTED | 2523 | 4 | 50 | ± 0.05 |
| Product | Linear Motion System | Driving | Protection | Load capacity [n] Fx | Max. Speed [m/s] | Max. Acceleration [m/s2] | Repeatability Accuracy [mm] |
|---|---|---|---|---|---|---|---|
ECO | BALLS/ROLLERS | TOOTHED BELT | SEMI-PROTECTED | 4565 | 5 | 50 | ± 0.05 |
| Product | Linear Motion System | Driving | Protection | Load capacity [n] Fx | Max. Speed [m/s] | Max. Acceleration [m/s2] | Repeatability Accuracy [mm] |
|---|---|---|---|---|---|---|---|
A | ROLLERS | TOOTHED BELT | SEMI-PROTECTED | 19360 | 7 | 15 | 15 |
C | ROLLERS | TOOTHED BELT | SEMI-PROTECTED | 19360 | 7 | 15 | 15 |
E | ROLLERS | TOOTHED BELT | SEMI-PROTECTED | 19360 | 7 | 15 | 15 |
ED | ROLLERS | TOOTHED BELT | SEMI-PROTECTED | 19360 | 7 | 15 | 15 |
H | ROLLERS | TOOTHED BELT | SEMI-PROTECTED | 19360 | 7 | 15 | 15 |
| Product | Linear Motion System | Driving | Protection | Load capacity [n] Fx | Max. Speed [m/s] | Max. Acceleration [m/s2] | Repeatability Accuracy [mm] |
|---|---|---|---|---|---|---|---|
TH | BALLS | BALL SCREW | SEMI-PROTECTED | 32600 | 2 | ± 0,005 | |

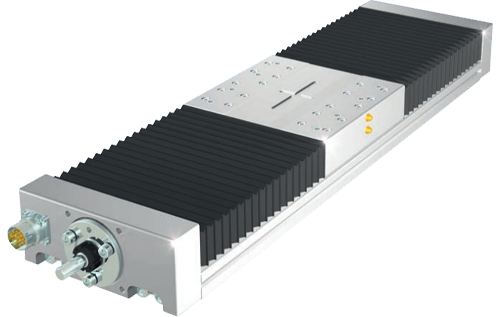

TT | BALLS | BALL SCREW | SEMI-PROTECTED | 30500 | 2,5 | ± 0,005 | |
TV | BALLS | BALL SCREW | SEMI-PROTECTED | 11538 | 2,5 | ± 0,01 | |
TVS | BALLS | BALL SCREW | SEMI-PROTECTED | 66300 | 1 | 5 | ± 0,02 |
| Product | Linear Motion System | Driving | Protection | Load capacity [n] Fx | Max. Speed [m/s] | Max. Acceleration [m/s2] | Repeatability Accuracy [mm] |
|---|---|---|---|---|---|---|---|

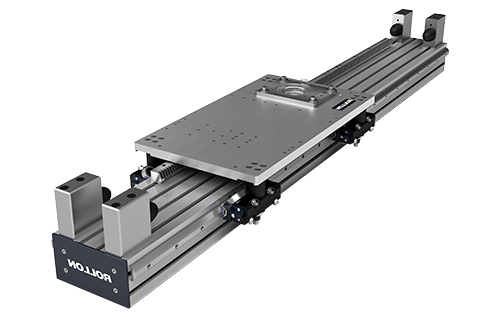

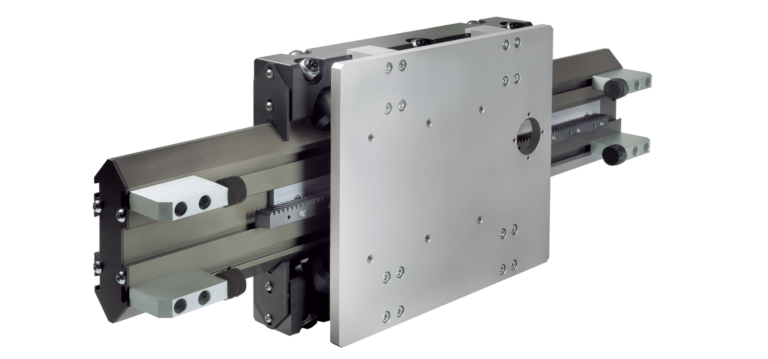

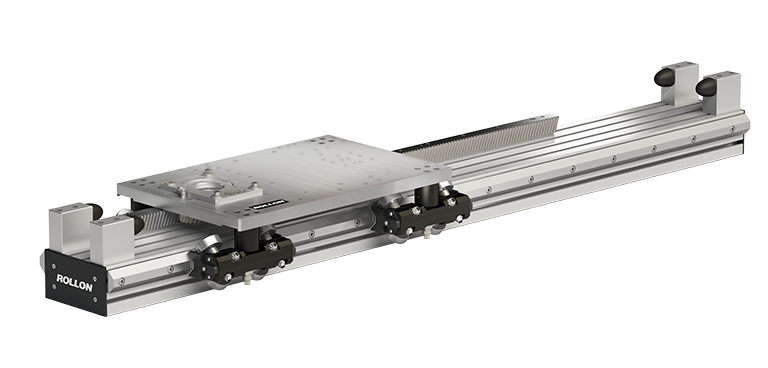

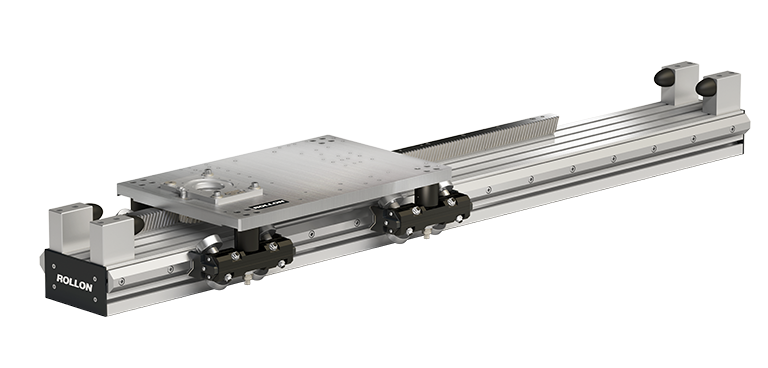

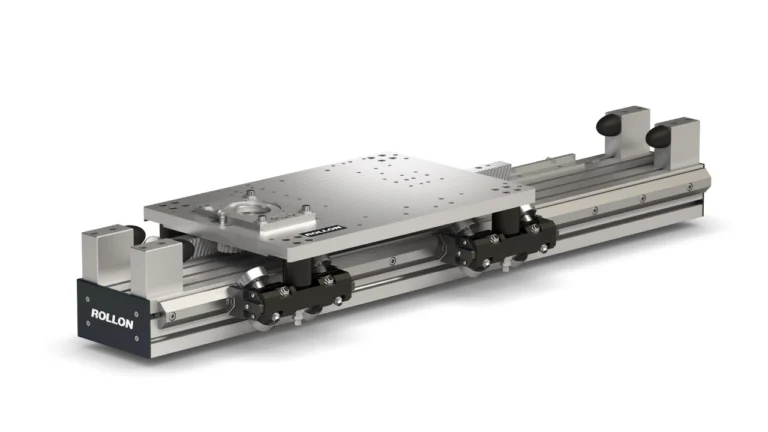

PAR | Cam Rollers | Rack and Pinion | 10989 | 4 | 10 | ± 0.05 | |

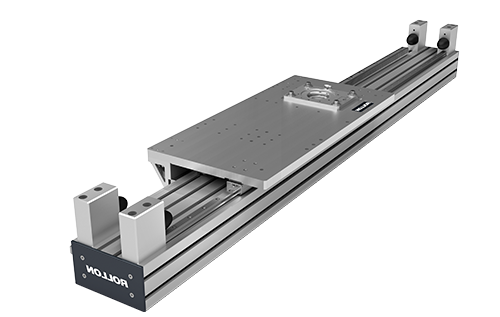

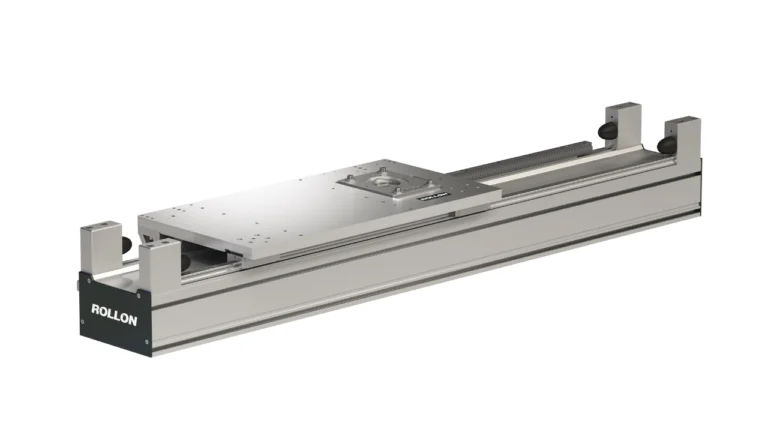

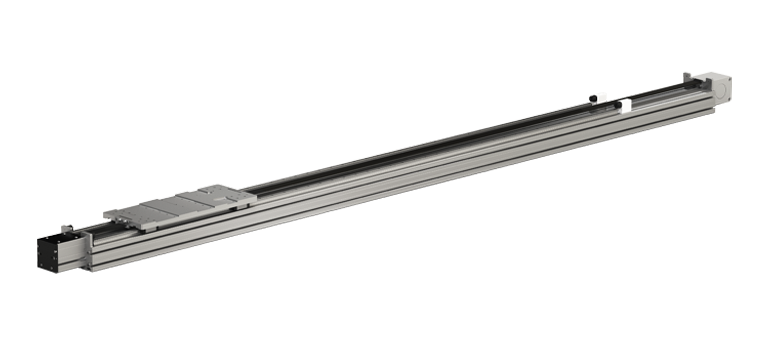

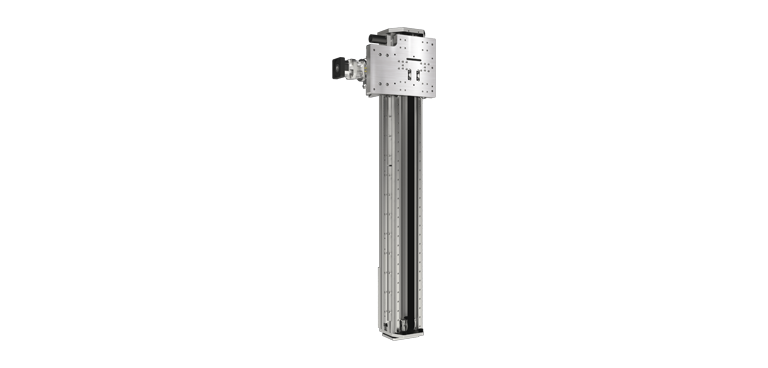

PAS | Recirculating Ball Guides | Rack and Pinion | 10989 | 4 | 10 | ± 0.05 |
| Product | Linear Motion System | Driving | Protection | Load capacity [n] Fx | Max. Speed [m/s] | Max. Acceleration [m/s2] | Repeatability Accuracy [mm] |
|---|---|---|---|---|---|---|---|
MCR | BALLS/ROLLERS | TOOTHED BELT | SEMI-PROTECTED | 3984 | 5 | 50 | ± 0.01 |
MCH | BALLS/ROLLERS | TOOTHED | SEMI-PROTECTED | 3984 | 5 | 50 | ± 0.01 |
TCR TCS | BALLS/ROLLERS | TOOTHED BELT | 9960 | 5 | 50 | ± 0.01 | |
ZCH | BALLS/ROLLERS | TOOTHED | 7470 | 4 | 25 | ± 0.01 | |
ZCR | BALLS/ROLLERS | TOOTHED BELT | 7470 | 4 | 25 | ± 0.01 |
| Product | Linear Motion System | Driving | Protection | Load capacity [n] Fx | Max. Speed [m/s] | Max. Acceleration [m/s2] | Repeatability Accuracy [mm] |
|---|---|---|---|---|---|---|---|
SAB | ROLLERS | TOOTHED BELT/RACK AND PINION | 4980 | 15 | 10 | ± 0,02 | |
ZSY | ROLLERS | TOOTHED | 4980 | 8 | 8 | ± 0,02 | |
SAR | ROLLERS | RACK AND PINION | 1905 | 3 | 10 | ± 0,15 |
