Linear and curved guides with ball and roller bearings, with hardened raceways, high load capacities, and low bending, resistant to shocks and vibrations. For partial, total or extended extraction up to 200% of the length of the guide.
| Product | Section | Hardened | Extraction | Rigidity | Material | Rolling Elements | Load capacity [n] Fx |
|---|---|---|---|---|---|---|---|

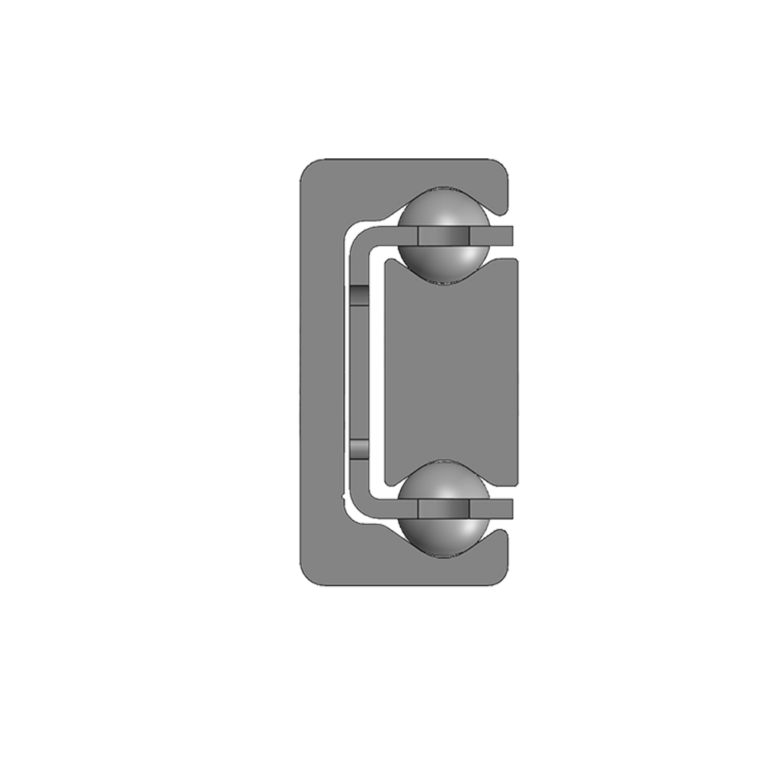

ASN |  |  |  |  | STEEL | BALLS | 88494 |

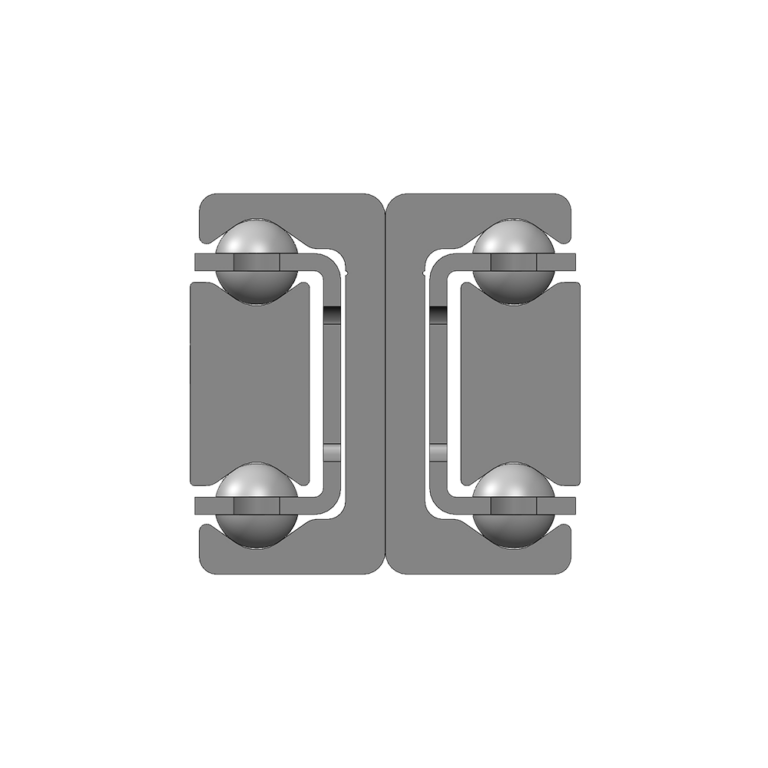

DE |  | |  | | STEEL | BALLS | 15512 |

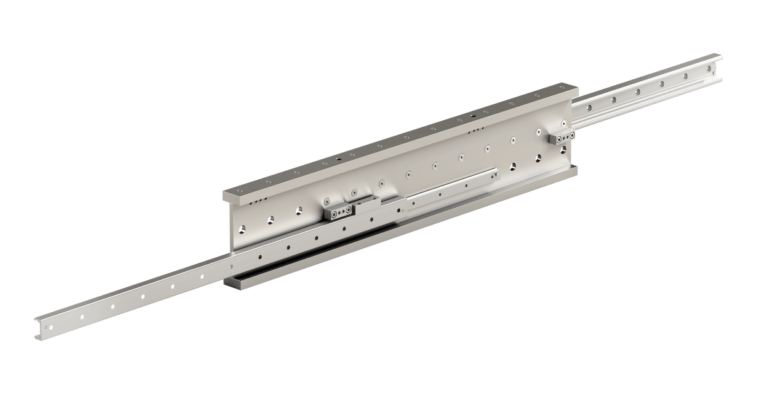

DS |  | | | | STEEL | BALLS | 38018 |
DSC |  | | | | STEEL | BALLS | 11058 |

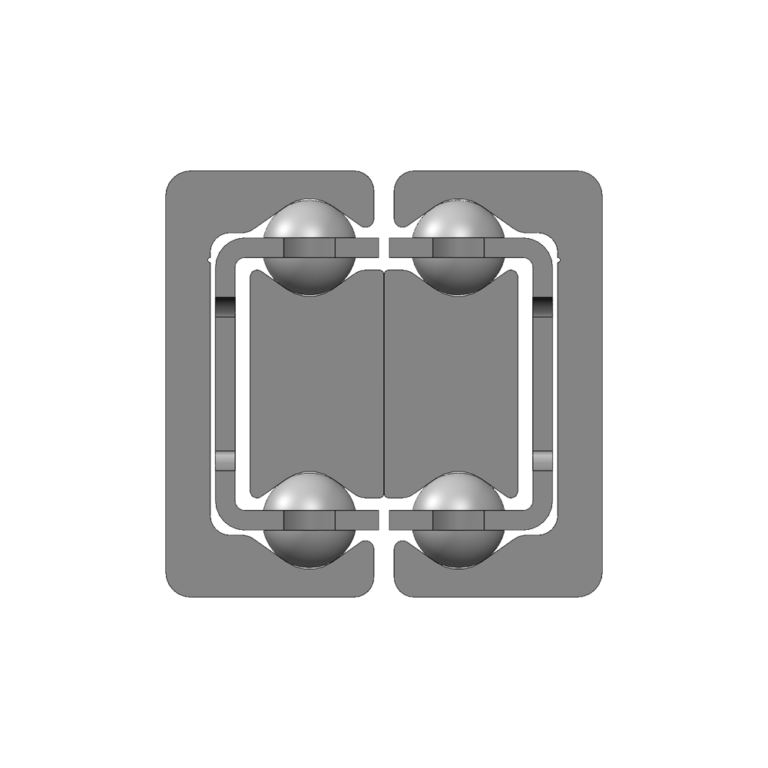

DBN |  | | | | STEEL | BALLS | 2662 |
DMS |  | | | | STEEL | BALLS | 39624 |

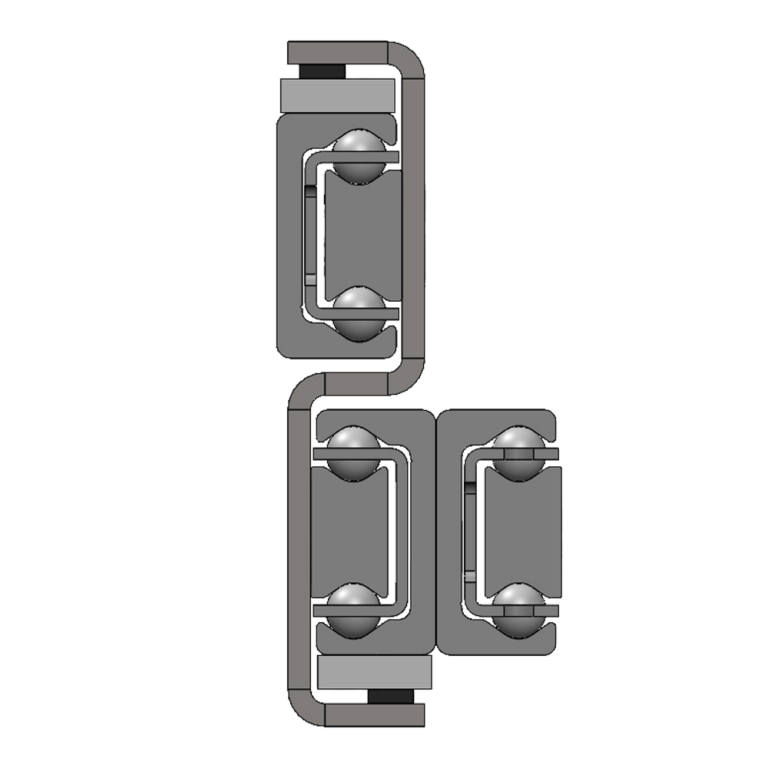

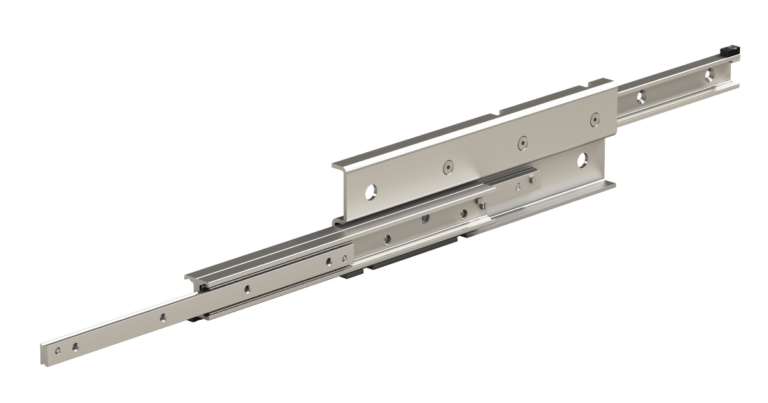

DSE |  | |  | | STEEL | BALLS | 11344 |
| Product | Section | Hardened | Extraction | Rigidity | Material | Rolling Elements | Load capacity [n] Fx |
|---|---|---|---|---|---|---|---|
HTT |  |  | | STEEL / STAINLESS STEEL / ALUMINIUM | BALLS | 2900 | |

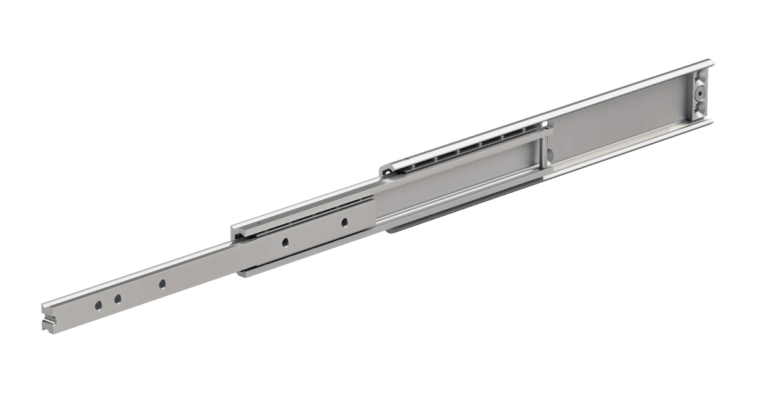

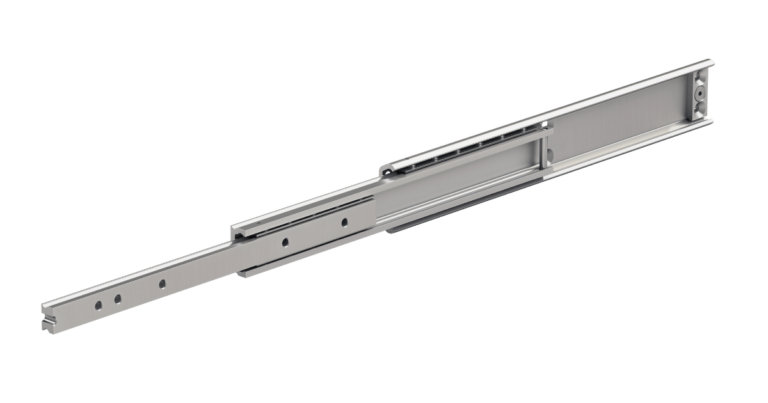

HVC |  | | | STEEL / STAINLESS STEEL | BALLS | 3300 | |

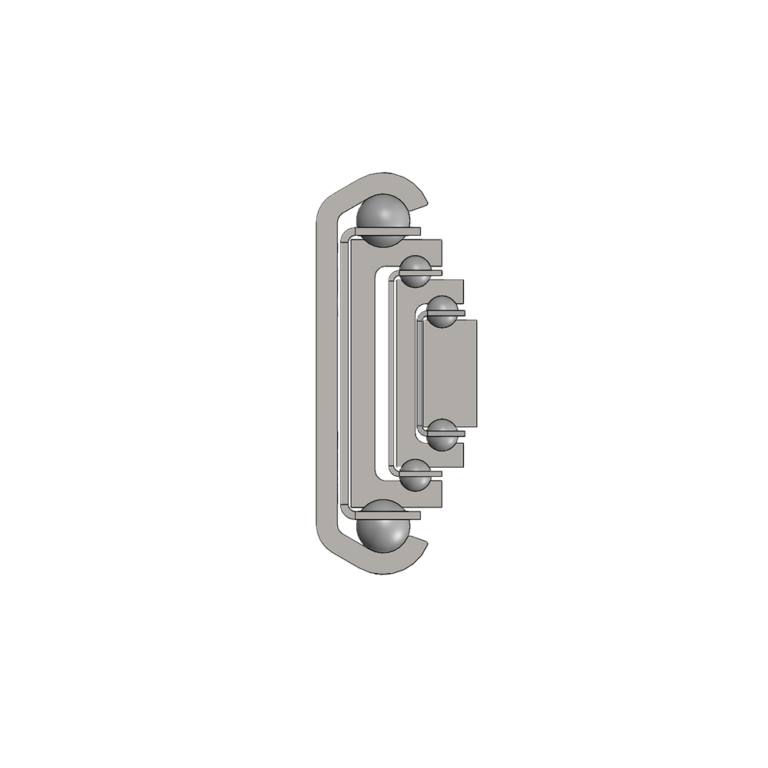

H1C |  | | | STEEL | BALLS | 1350 | |
H1T |  |  | | STEEL / STAINLESS STEEL / ALUMINIUM | BALLS | 7500 | |
H2H |  | | | STEEL / STAINLESS STEEL / ALUMINIUM | BALLS | ON REQUEST | |

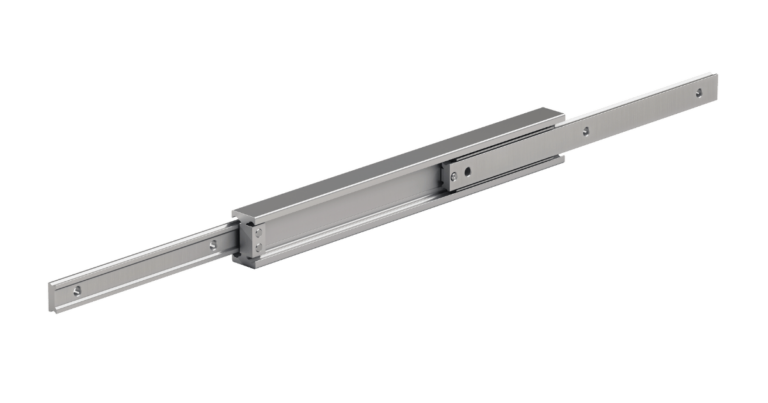

LTH |  | | | STEEL | BALLS | 3346 | |
HGT |  | | | STEEL / STAINLESS STEEL / ALUMINIUM | BALLS | 20000 | |

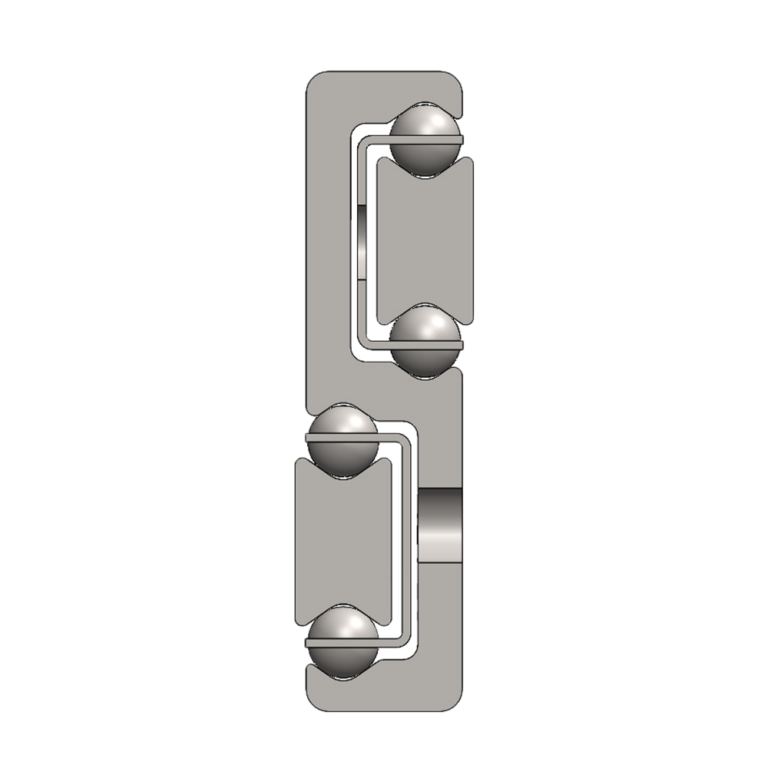

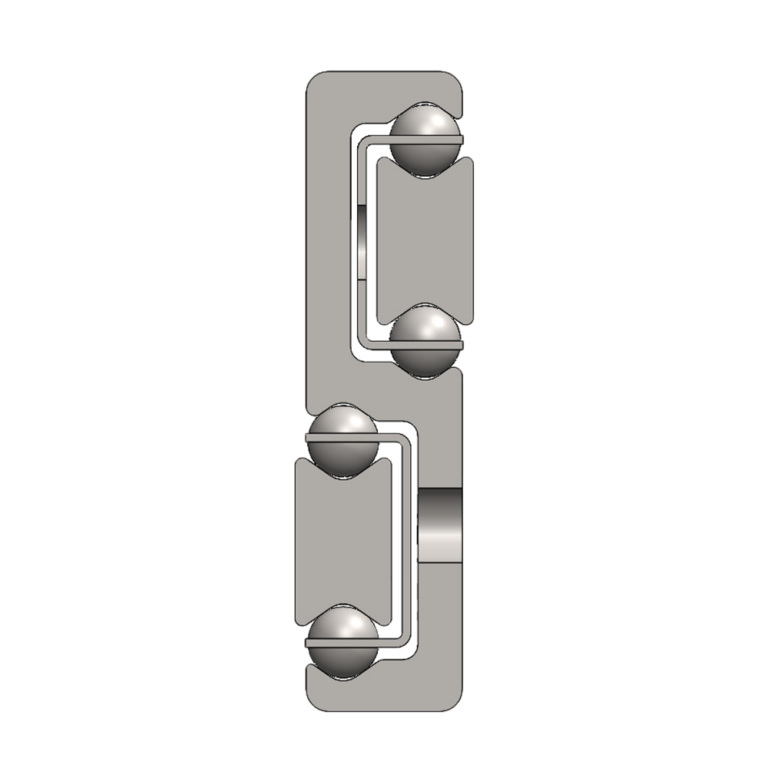

LTF |  | | | STEEL | BALLS | 1296 | |
HGS |  | | | STEEL / STAINLESS STEEL / ALUMINIUM | BALLS | 1400 |
| Product | Section | Hardened | Extraction | Rigidity | Material | Rolling Elements | Load capacity [n] Fx |
|---|---|---|---|---|---|---|---|

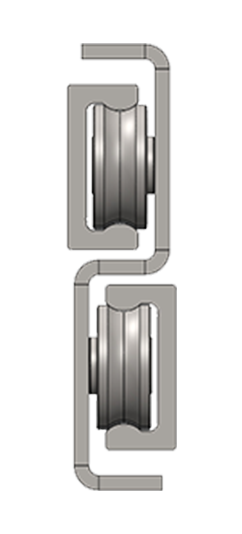

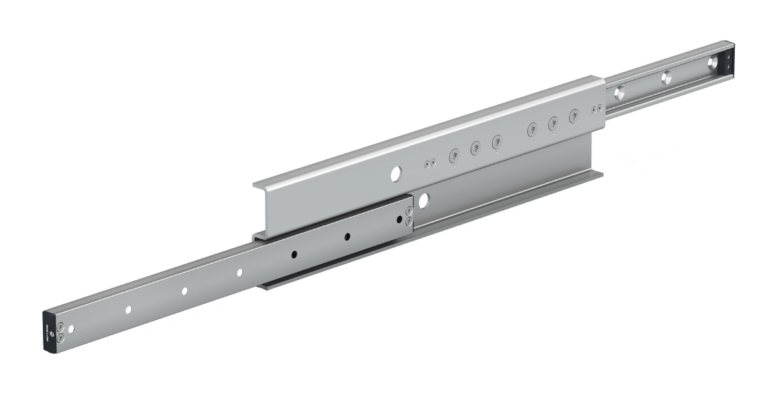

TLR...P  |  |  | | | STEEL | ROLLERS | 8326 |
TLQ...P |  | |  | | STEEL | ROLLERS | 5357 |

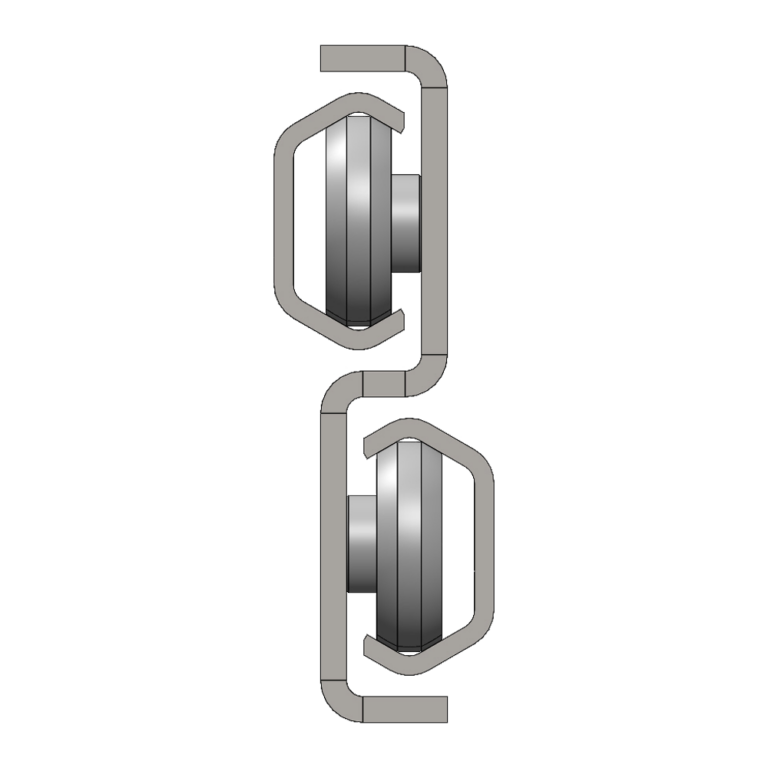

TLN...P |  | | | | STEEL | ROLLERS | 5094 |
TQN...P |  | | | | STEEL | ROLLERS | 2251 |

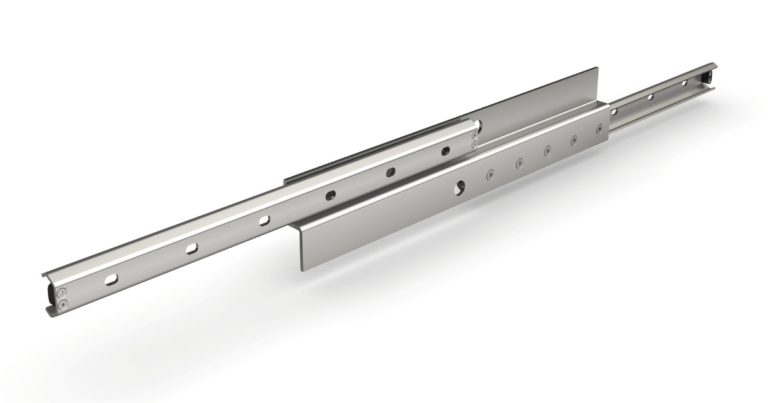

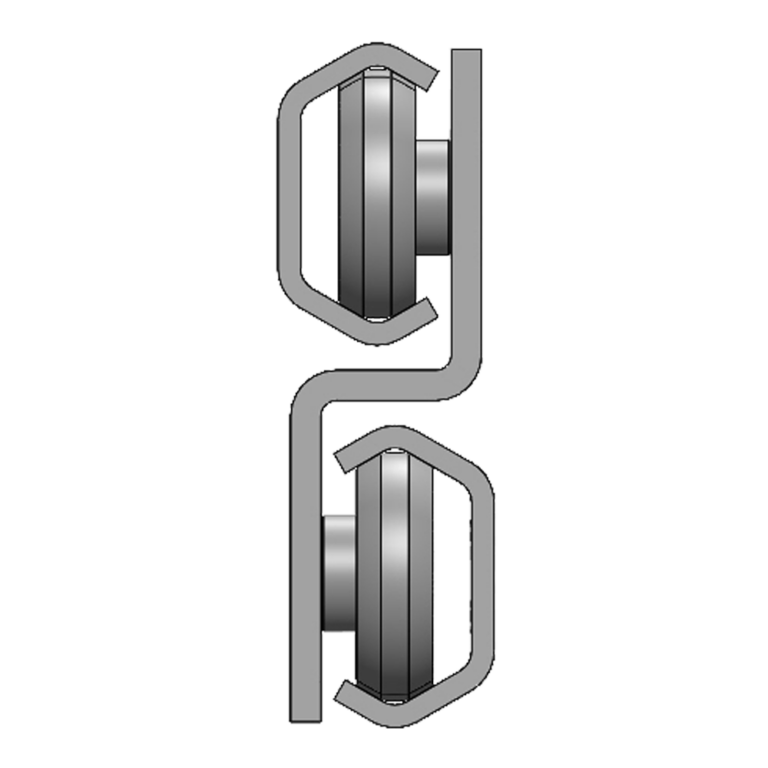

TLAX |  | | | STAINLESS STEEL | ROLLERS | 2133 | |
TQAX |  | | | STAINLESS STEEL | ROLLERS | 1880 |
| Product | Section | Hardened | Extraction | Rigidity | Material | Rolling Elements | Load capacity [n] Fx |
|---|---|---|---|---|---|---|---|

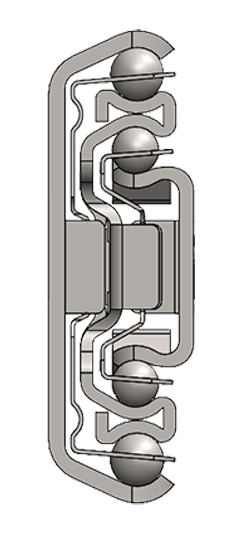

LRS |  |  | | STEEL | BALLS | 780 | |
LFS |  | | | STEEL | BALLS | 400 | |

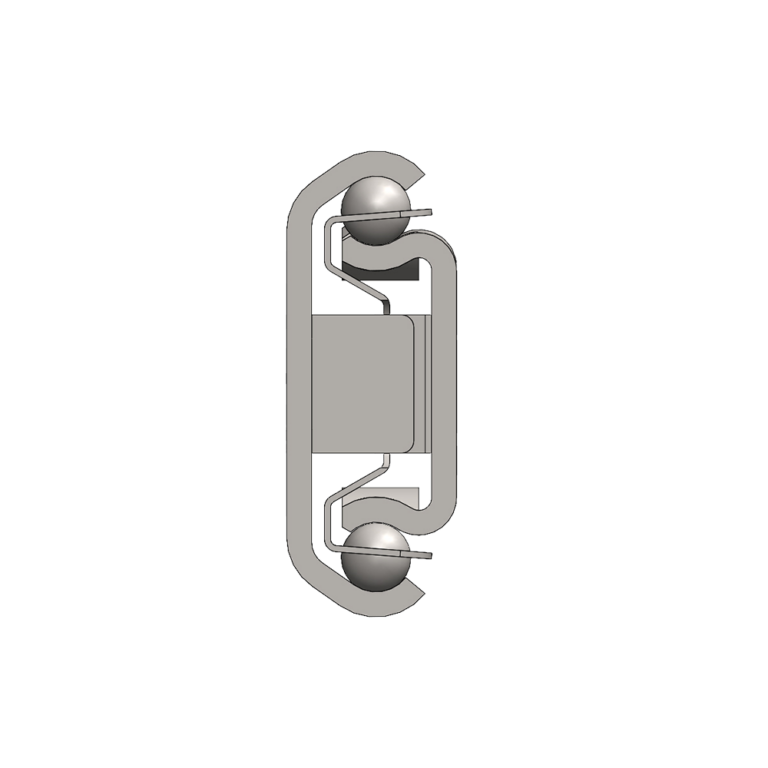

LRS |  | | | STEEL | BALLS | 3250 |
