Things to Know About Rod Ends
Rod ends connect mechanical components while allowing motion in multiple directions. You’ll find these specialized bearings in countless industrial applications—from automation equipment and heavy machinery to vehicle suspensions and aerospace controls. They combine a spherical ball mounted in a housing with a connected rod that enables rotation.
Components of High Quality Rod End Bearings
Ball
The ball sits at the heart of any rod end bearing, making rotation and pivoting possible. Made from high-grade steel or stainless steel, it’s ground to precise tolerances (usually within ±0.01 mm) to ensure smooth operation. Many premium designs include chrome plating or special surface treatments that reduce friction and extend service life under demanding conditions.
Inner Ring
The inner ring is wrapped around the ball and provides a smooth contact surface that keeps everything moving properly. It’s typically manufactured from case-hardened steel with carefully controlled dimensions that match the ball’s size. The surface roughness is precisely managed to optimize performance and minimize wear during operation.
Housing
The housing encases everything and gives the assembly its strength, so you’ll find these made from forged steel, stainless steel, or sometimes aluminum alloys when weight matters. Most designs include threading for installation and may feature lubrication fittings for maintenance. How the housing is built directly affects how much load the rod end can handle and how long it lasts.
Race
Inside the housing, the race is the hardened surface that contacts the ball directly. This precision-ground component handles both rotational and angular movements. With hardness ratings typically between 58-62 HRC, the race needs to be tough enough to withstand stress while maintaining dimensional stability over time.
Importance of Rod Ends
Industrial rod ends play an important role in machinery by compensating for misalignment while maintaining structural integrity. This compensation reduces wear throughout the system and helps prevent unexpected failures. Stainless rod end options offer exceptional resistance to corrosion in challenging environments like food processing or outdoor applications.

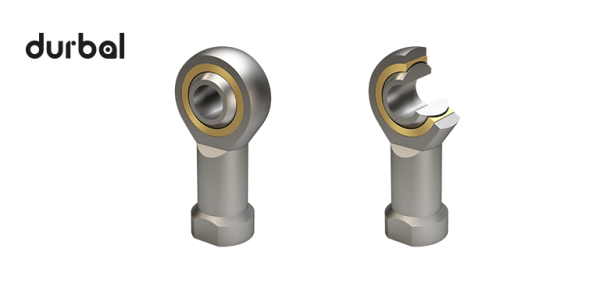

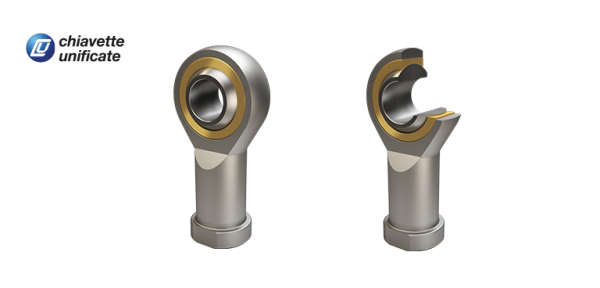

Today’s bearing rod end designs often include self-lubricating PTFE liners that eliminate the need for regular maintenance and these maintenance-free versions work perfectly in hard-to-reach locations or around-the-clock operations.

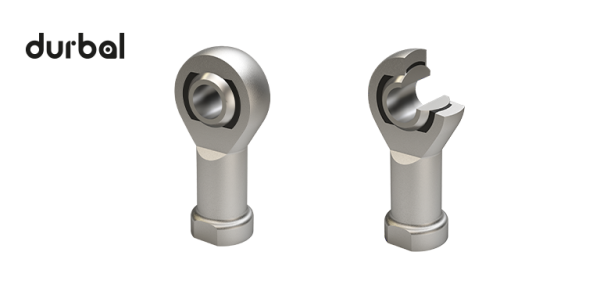

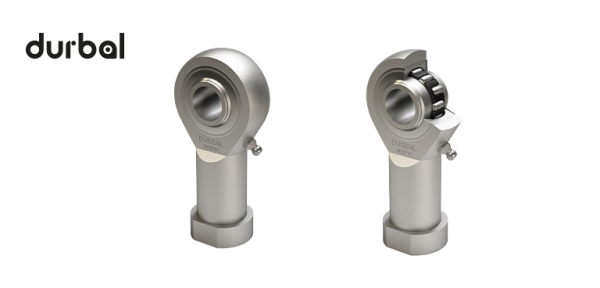

When you’re dealing with heavy loads, roller-bearing rod ends deliver superior capacity and longevity compared to standard ball designs.
Rod end bearings come in different fit classifications that determine their movement characteristics—from extremely tight (needing tools to move) to nearly free-moving with minimal resistance. This range lets you select exactly the right performance for your specific application needs.
When selecting rod ends, you need to consider several factors: the load they’ll carry, how much misalignment they’ll need to handle, the temperature range they’ll operate in, environmental conditions, and how accessible they’ll be for maintenance.
