Easyslide

A compact solution
for Heavy Loads

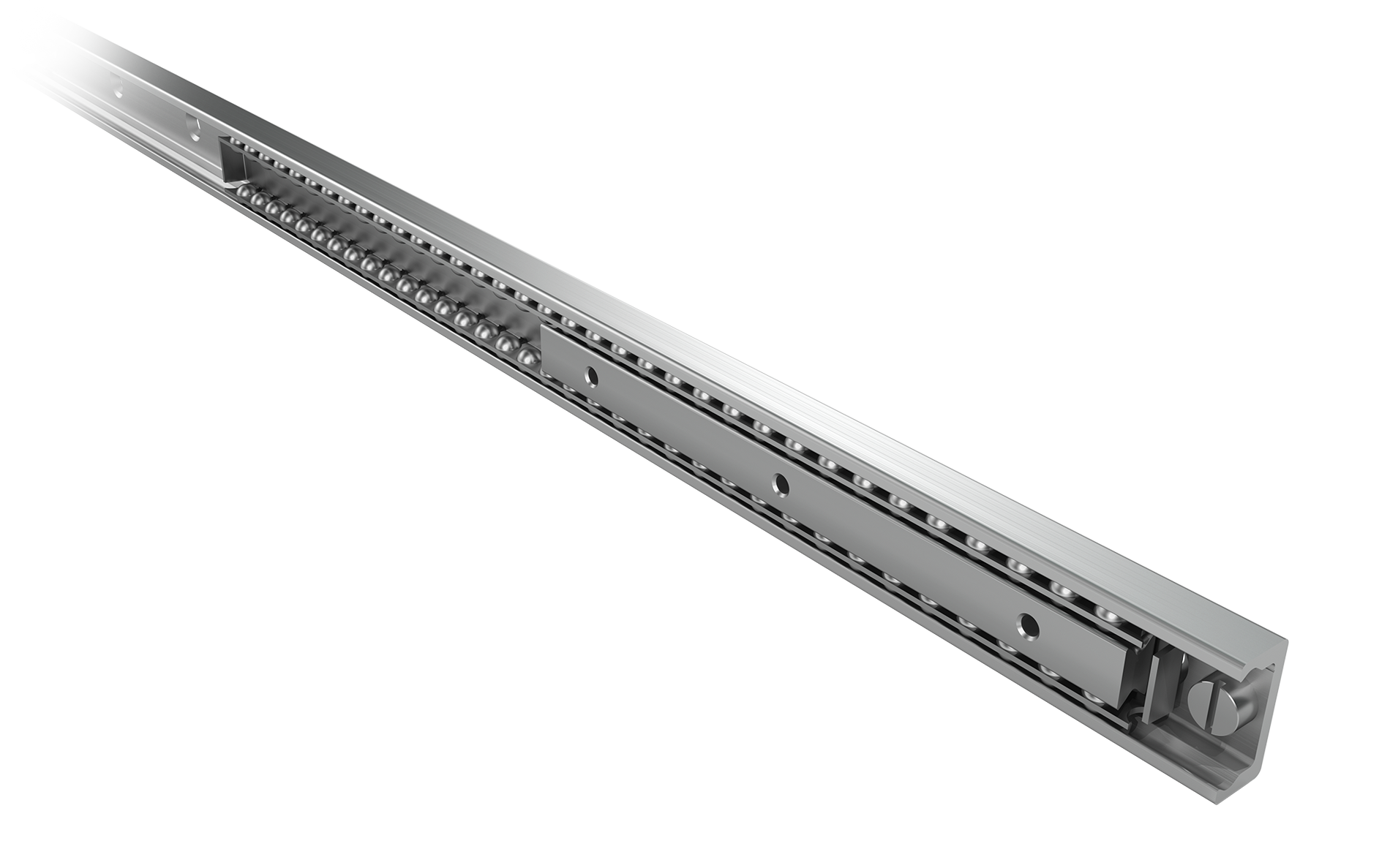

Linear ball rails with single slider or multiple sliders

The system consists of an “C” shaped linear profile rail, and one or more internal sliders with caged recirculating ball bearings.

Hourglass

Long lifetime

Induction hardened raceways
with 1.2 mm effective depth and
hardness between 58 and 62 HRC.
Easyslide compact
space saving

Space saving

‘C’ profile linear rails with
incorporated sliders make
this a very compact solution.
high loads

High loads

Up to 12,000 Kg per slider due to
the caged balls system.
Easyslide broken down

See technical details and
select your Easyslide.

ProductSectionHardenedSelf alignmentSliderAnticorrosionLoad capacity [n]Operating temperature
SN
BALLS
122000
-20°C/+170°C
SNK
BALLS
10858
-20°C/+70°C
