3D Multi-Axis

We build it for you

Versatile multi-axis systems designed
starting from your specific needs.

Different X/Y/Z configurations available and different
driving systems for any application.

Select your XYZ Multi-Axis



Ready to use

All the advantages of a ready made solution designed for you with our 45 years expertise in linear motion:
• engineered and tested solution
• short assembly time and service
• low maintenance and additional warranties

Multiple X/Y/Z configurations

Our Multi-Axis solution can be assembled in several different configurations, such as:
• Pick & place Y-Z
• Pick & place Y-2Z
• Gantry 2X-Y-Z

Different driving systems

• Belt for high dynamics
• Rack and Pinion for long strokes and independent carriages
• Ball screw for high precision

Fully accessorized

A large quantity of accessories
is available, such as:
• energy chains
• safety systems
• nuts and dedicated plates for assembly
• lubrication systems
• proximity holders and cams</p

Find out the technical details and
select your 3D Multi-Axis.

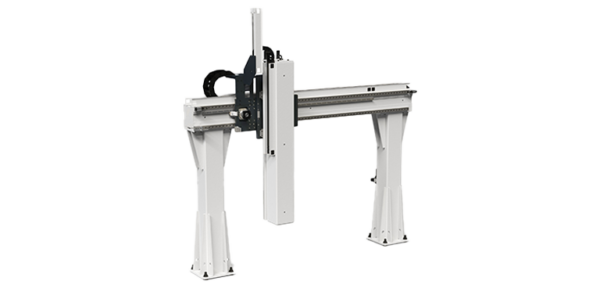

2XYZ ELM CR+ROBOT CR+SC CR

2X-Y-Z Gantry with stainless steel components for demanding environments

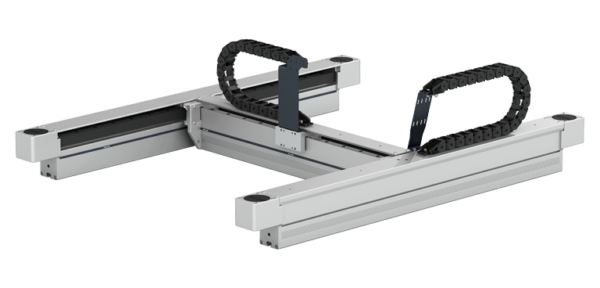

2XYZ ESMART+RSMART+ZCH

Rigid 2X-Y-Z Gantry for moderate to high loads

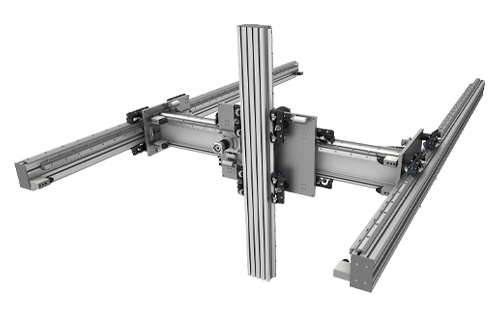

2XYZ ESMART+RSMART+SSMART

Economical 2X-Y-Z Gantry with streamlined design for light to moderate payloads
