Telescopic Rail

The go-to for heavy duty

8 different series of telescopic linear rails with hardened raceways
for high load capacity.

Minimum deflection while under very heavy loads,
even when fully extended.

Long lifetime

Thanks to induction hardened raceways.

High load capacity

Up to 3.800 Kg. per pair of guides

Different extractions

Partial or full extractions are available up to 150% of the lenght of the guide in closed position.

Safety options

Telescopic Rail guides feature a full range of:

  • locking systems
  • damping systems
Rack and pinion synchronization available

Rack and pinion synchronization available

Loe deflection

Low deflection due to sturdy profiles

Wide range of anticorrosion surface treatments

Wide range of anticorrosion surface treatments

Find out the technical details and
select your Telescopic Rail.

Product Section Hardened Extraction Rigidity Material Rolling Elements Load capacity [n]
ASN
STEEL
BALLS
88494

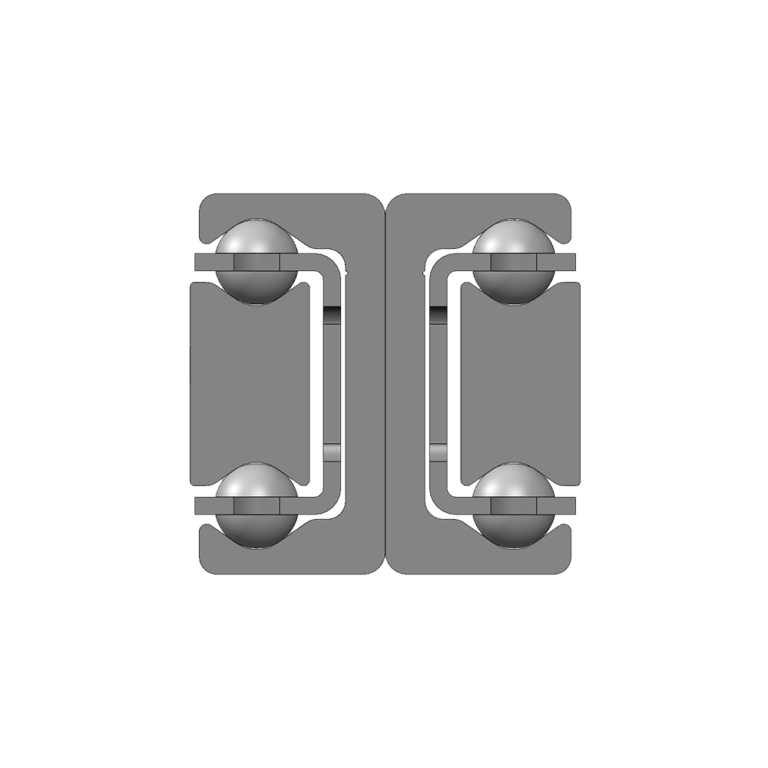

DE
STEEL
BALLS
15512

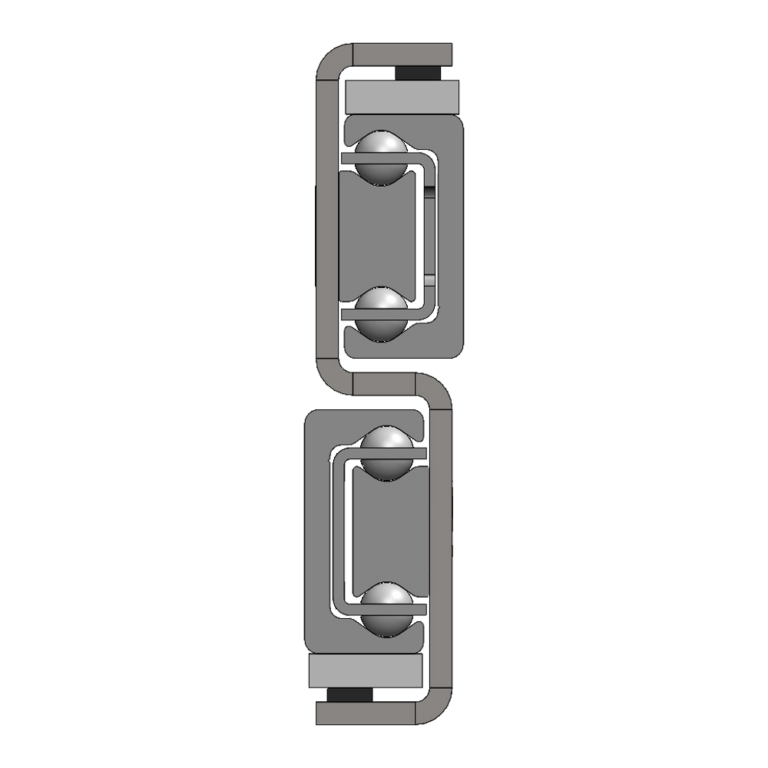

DS
STEEL
BALLS
38018

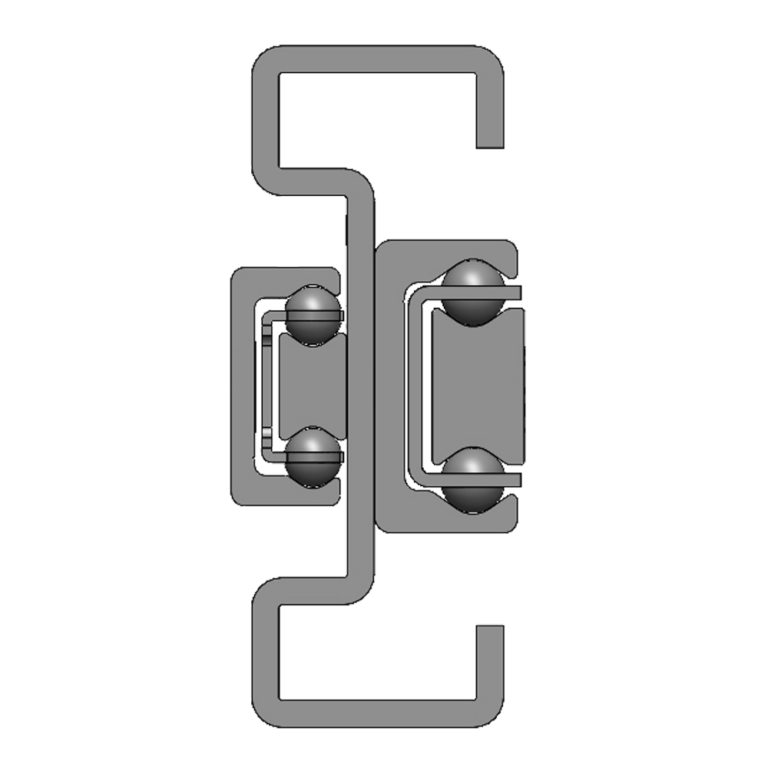

DSC
STEEL
BALLS
11058

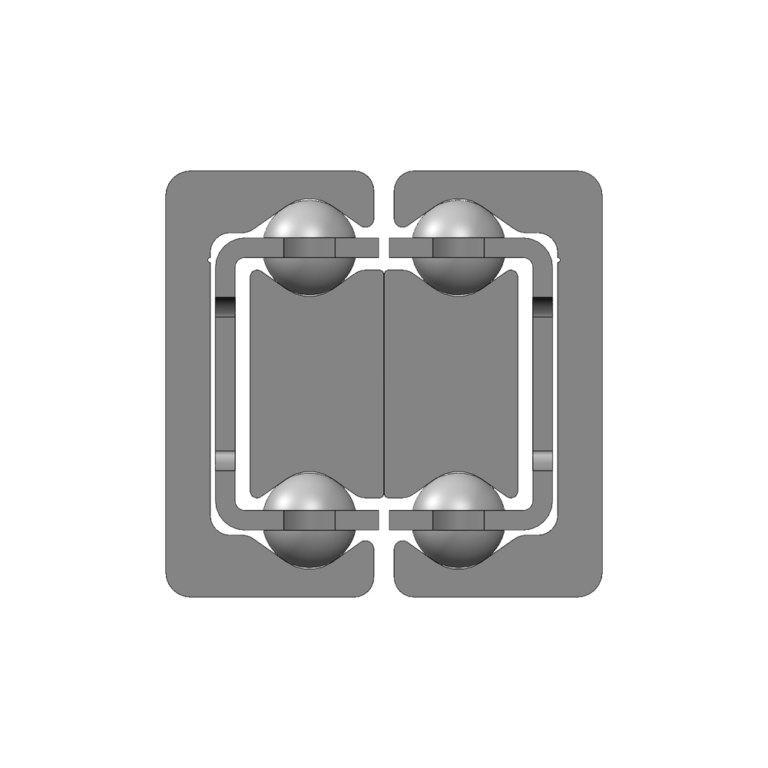

DBN
STEEL
BALLS
2662

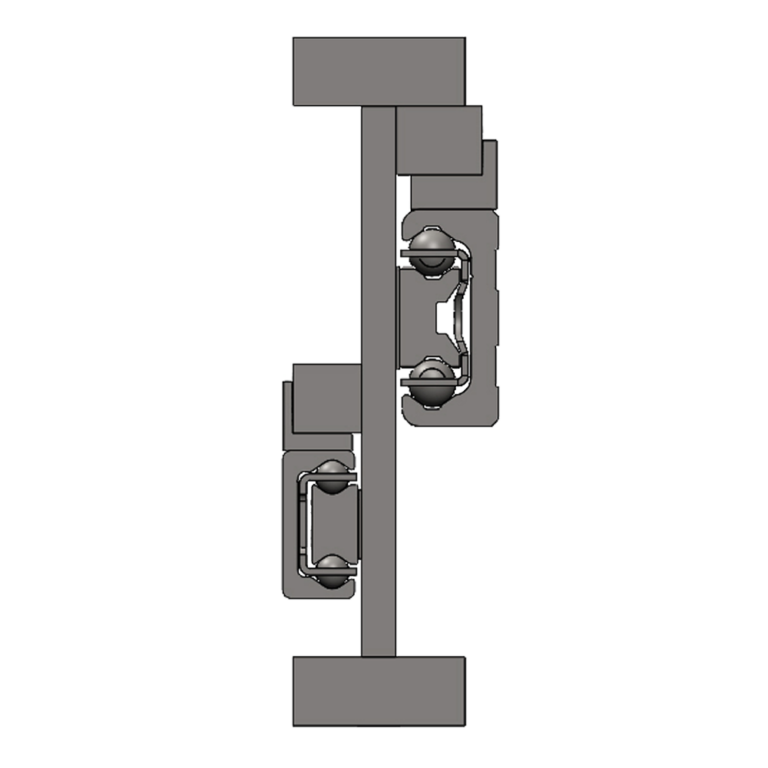

DMS
STEEL
BALLS
39624

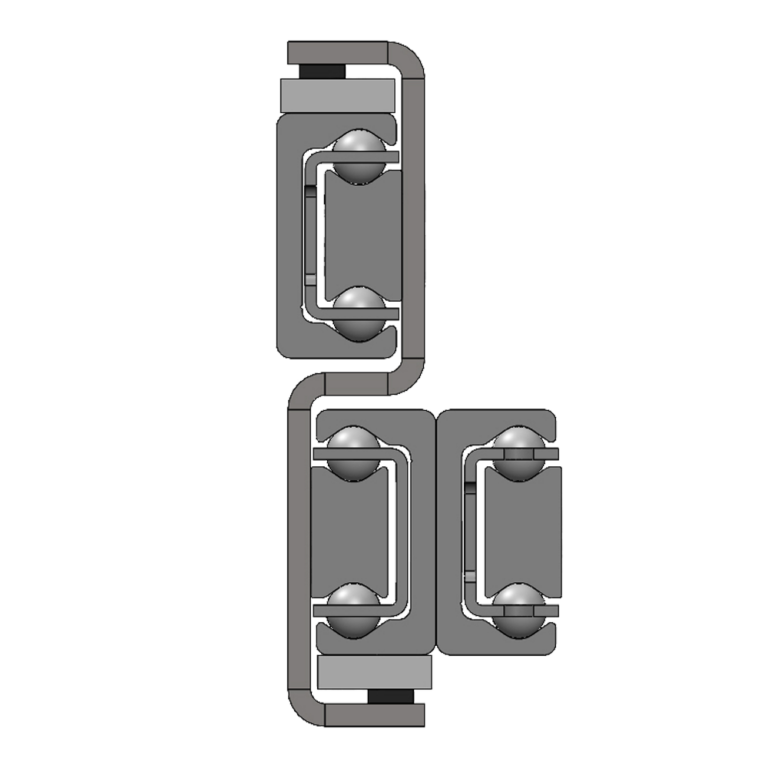

DSE
STEEL
BALLS
11344
