Plus System

The highest level of protection

High performance linear units with steel re-enforced driving belt

Protected yet robust designs offer high performant actuators, enabling dynamic motion for high payloads in the harshest environments.

High protection for dirty environments

A polyurethane sealing strip ensures the belt drive and linear guide system are protected against dust, dirt, chips, liquids and other contaminants.

High working cycles

The thrust force is transmitted by a steel reinforced, polyurethane belt drive. The moving carriage is guided and supported by a linear guide system or cam roller system.

High Dynamics

  • Speed up to 5 m/s
  • Acceleration up to 50 m/s2

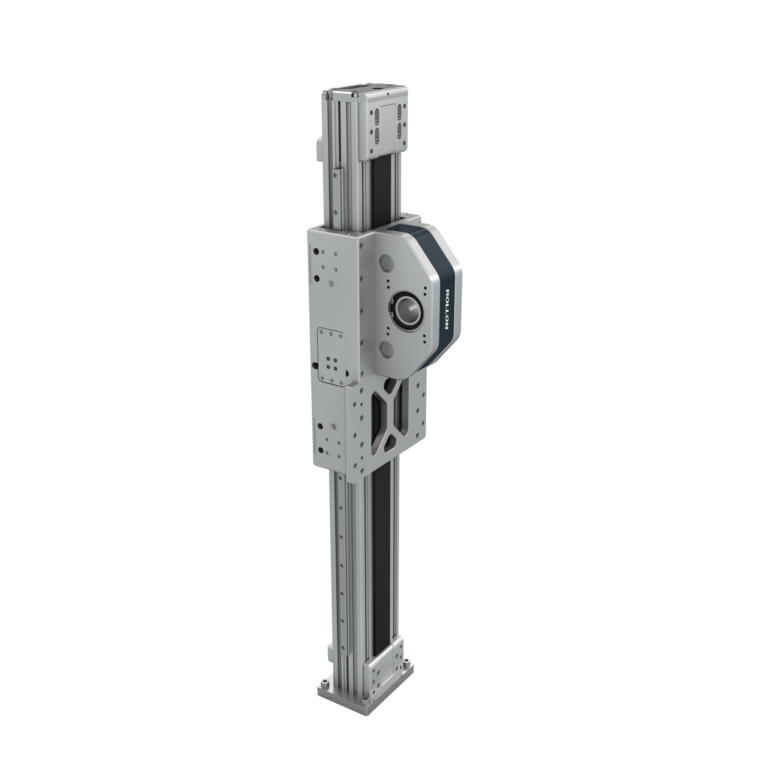

Vertical solution available

SC is the ideal solution for vertical movements:

  • Fixed carriage and movable profile
  • Omega belt system
High repeatability accuracy: ±0,05 mm

High repeatability accuracy: ±0,05 mm

anti corrosion

Anti-corrosion version available with stainless steel components

See technical details and
select your Plus System actuator.

ProductLinear Motion SystemDrivingProtectionLoad capacity [n]Max. Speed [m/s]Max. Acceleration [m/s2]Repeatability Accuracy [mm]

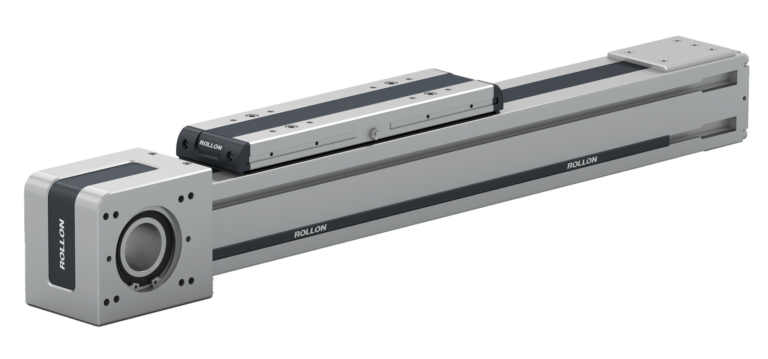

ELM
BALLS
TOOTHED BELT
PROTECTED
4980
5
50
± 0.05
ROBOT
BALLS
TOOTHED BELT
PROTECTED
9545
5
50
± 0.05
SC
BALLS
TOOTHED BELT
SEMI-PROTECTED
5810
5
50
± 0.05
