Clean Room System

Designed for clean rooms

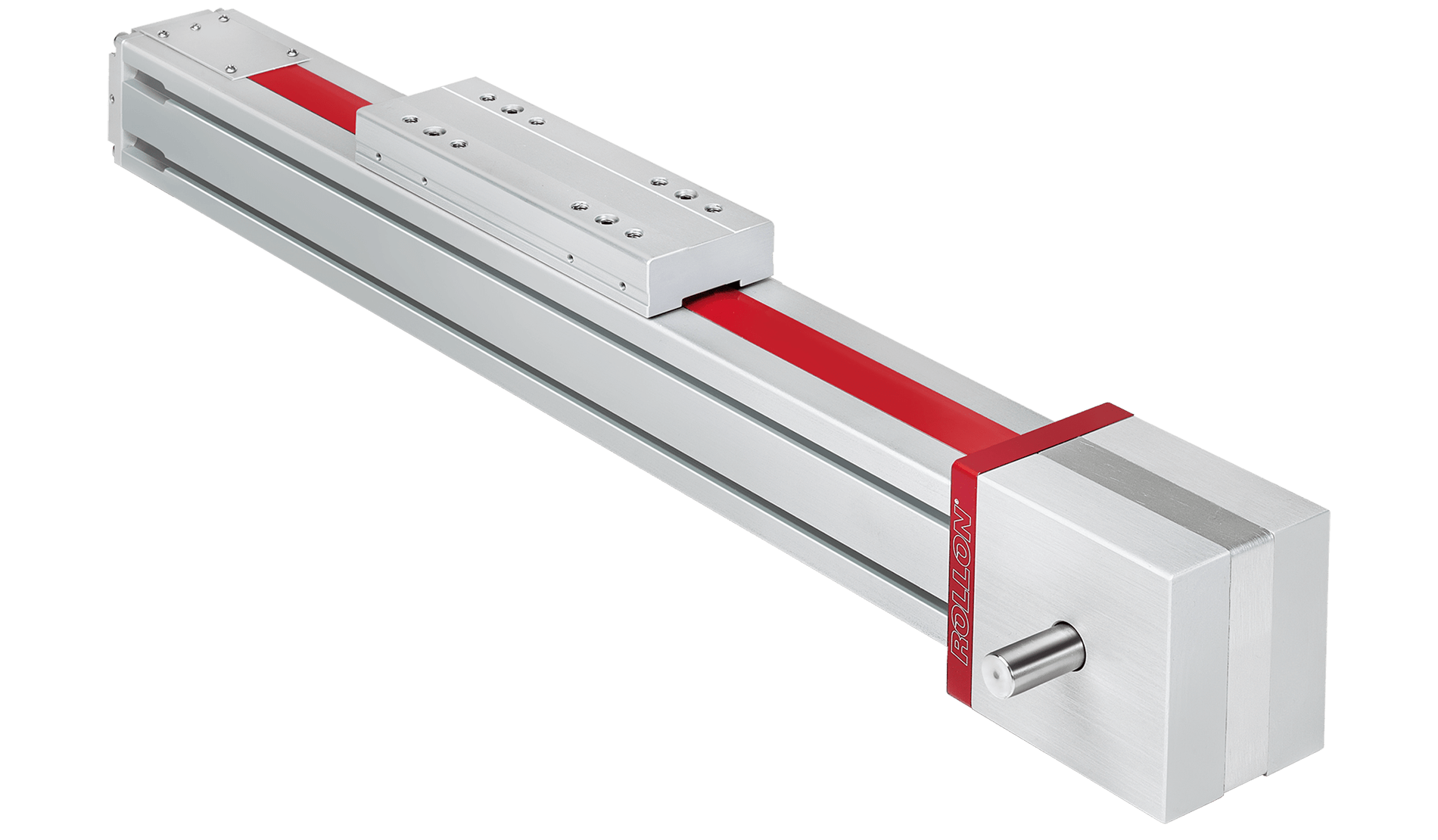

Belt driven linear actuators with aluminum profile.

A vacuum system prevents particles from being discharged in the environment where the linear unit is located.

icon clean room

Clean room class ISO 3

Special vacuum system with:
• Sealing strip along the opening where the slide moves
• 0.8 vacuum pump connected to 2 vacuum pipes located inside the drive head and the idle head
icon high repeatability

High repeatability and accuracy

Repeatability accuracy of ±0,05 mm
High dynamics: V= 15m/s, A=10m/s2

High Dynamics

• Speed up to 7 m/s
• Acceleration up to 20 m/s²



Clean Room System

See technical details and
select your Clean Room System.

ProductLinear Motion SystemDrivingProtectionLoad capacity [n]Max. Speed [m/s]Max. Acceleration [m/s2]Repeatability Accuracy [mm]
ONE
BALLS
TOOTHED BELT
PROTECTED WITH SUCTION
4980
5
50
± 0.05
